Seat Back - Installation
>>
Plastic Back Cover
Plastic Back Cover

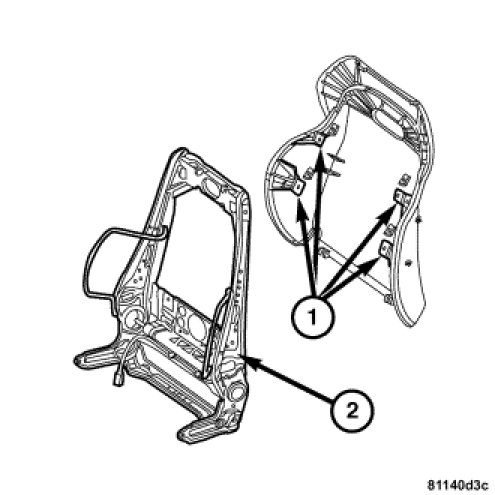

PLASTIC BACK COVER
1.
Install the plastic back cover on the top of the seat back frame (2).
2.
Install the screws (1) on left and right sides.
3.
Install the cover on the
seat back
.
Seat Back Cover - Installation
.
