Recliner Motor - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the seat back cover enough to expose the recliner motor. Seat Back Cover - Removal.

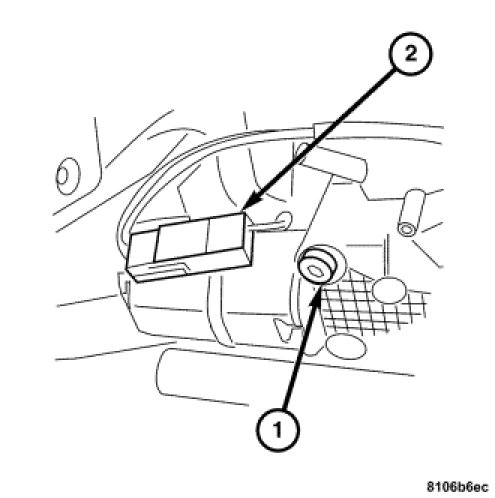

3. Remove the bolt (1) attaching the recliner motor to the seat back frame.
4. Disconnect the recliner motor harness connector (2).

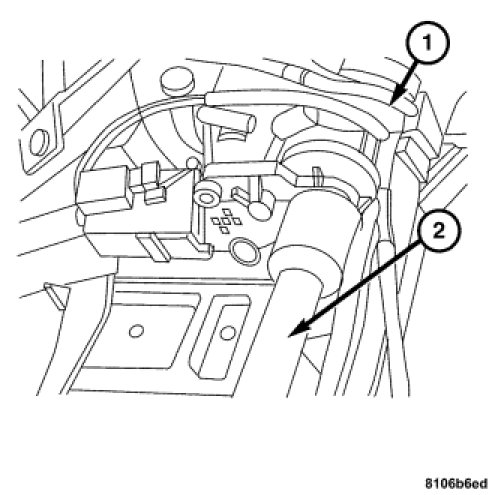

5. Remove the snap ring on the shaft then remove the shaft (2) from the seat back frame (1).
6. Remove the recliner motor.
