Flap Inner Cover

FLAP INNER COVER





NOTE: Hydraulic pressure in the convertible top system may deplete after 10 minutes. To prevent the top from lowering, press the convertible top switch momentarily after the system beeps. This will re-energize the hydraulic system.

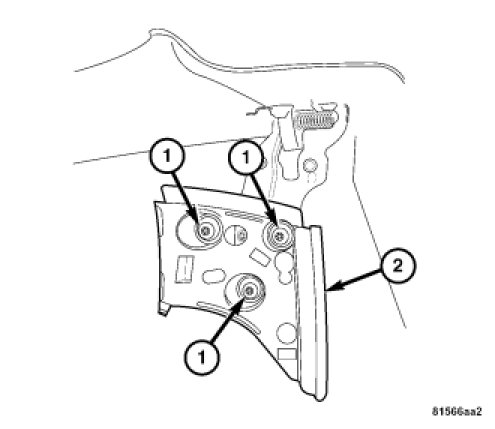

1. Position the flap inner cover (2) and install the bolts (1). Tighten to 8 Nm (8 ft. lbs.).
2. Install the flap outer cover. Installation.
3. Operate the convertible top and check for any clearance concerns.
