Flap Bracket

FLAP BRACKET





NOTE: Hydraulic pressure in the convertible top system may deplete after 10 minutes. To prevent the top from lowering, press the convertible top switch momentarily after the system beeps. This will re-energize the hydraulic system.

1. Route the cables through the flap bracket as they were removed.

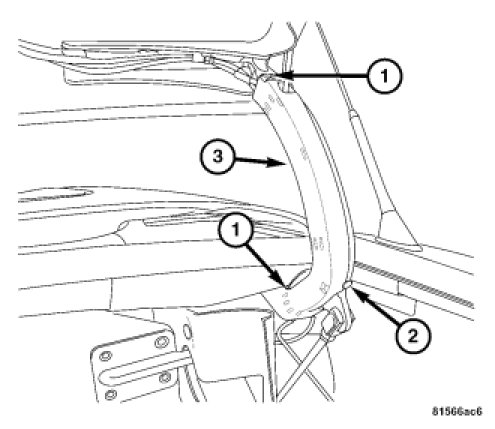

2. Position the flap bracket (3) on the tonneau cover armature and install the push-pin (2).
3. Close the clips (1) on the top and bottom of the bracket (3).
4. Operate the top and verify the cables do not interfere with normal operation.
