Rear Bow Latch

REAR BOW LATCH

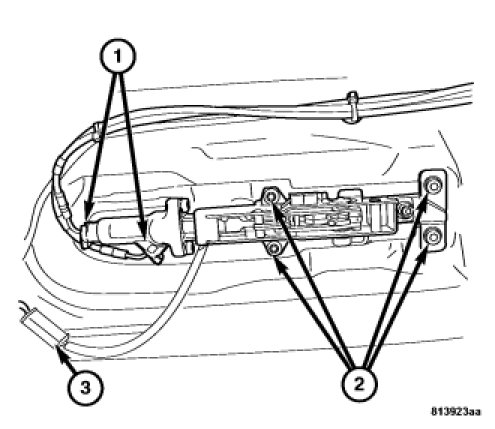

1. Install the rear bow latch to the tonneau cover. Tighten screws (2) to 8 Nm (71 in. lbs.).
2. Connect the hydraulic lines (1) to the rear bow latch.
3. Connect the rear bow latch harness connector (3).
4. Connect the negative battery cable.
