Pump Reservoir

PUMP RESERVOIR





1. Disconnect the negative battery cable.
2. Remove the power top hydraulic assembly.Removal.

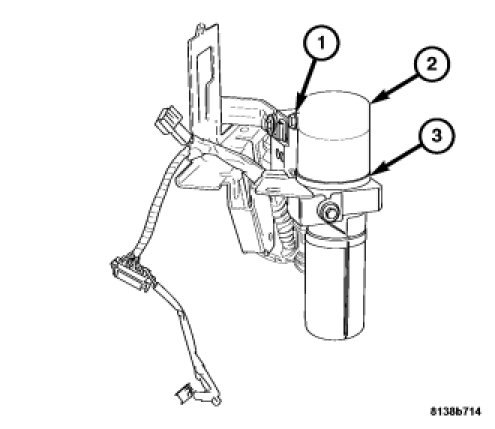

3. Remove the reservoir plug (1) and drain fluid.
4. Remove the reservoir retaining clamp (3) and remove reservoir (2) from the hydraulic pump assembly.
