Cylinder Travel Sensor

CYLINDER TRAVEL SENSOR





NOTE: If a main cylinder or rear bow cylinder travel sensor is faulty, all of the main and rear bow cylinder travel sensors must be replaced.

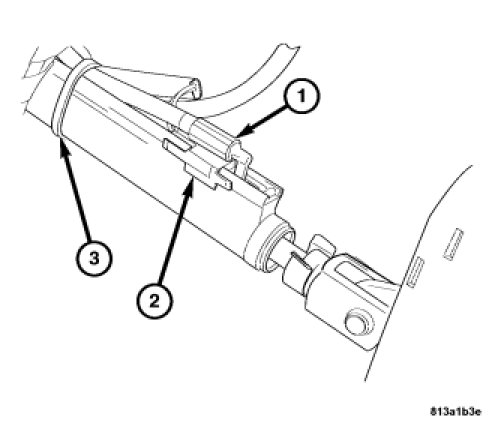

1. Remove the plastic tie wrap (3) from the hydraulic cylinder.
2. Rotate the hydraulic line (1) on the hydraulic cylinder in order to gain access to the travel sensor.

NOTE: The travel sensor is retained by a pressed fit. To remove the travel sensor, grasp the sensor and gently pry the sensor from the hydraulic cylinder housing.

3. Remove the travel sensor (2) from the hydraulic cylinder.
