Tonneau Cover Cylinder







TONNEAU COVER CYLINDER

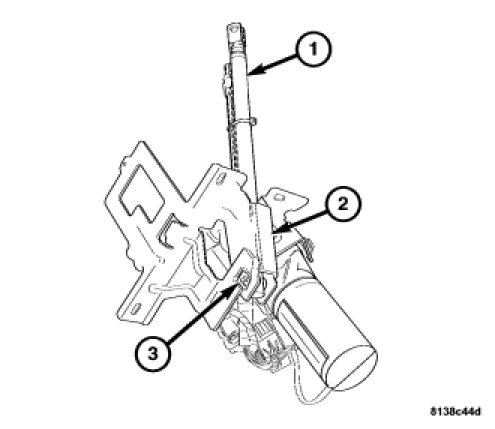

1. Install tonneau cover cylinder (1) to pump bracket (2) and install the lower retainer (3).

NOTE: Be sure to use new retainers and O-rings when installing hydraulic lines to the cylinder.

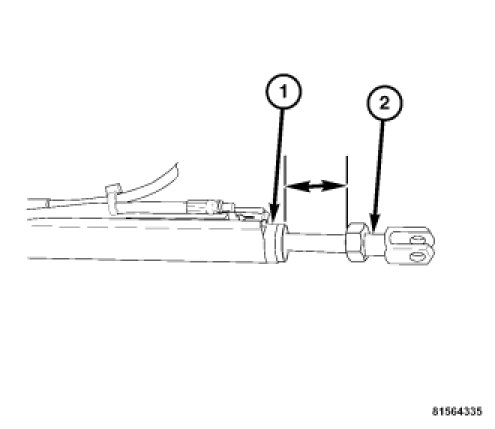

2. Loosen the locknut and adjust the cylinder shaft so that the clevis (1) is 6.4-12.4 mm (0.25-0.49 in.) from the lock nut (2). Tighten the lock nut to 10 Nm (89 in. lbs.).
3. Connect hydraulic lines to cylinder with new retainers.
4. Connect both travel sensors to the cylinder.
5. Install the hydraulic pump assembly Installation.
6. Install the left side trunk trim panel.
7. Connect the negative battery cable.
