Description







DESCRIPTION

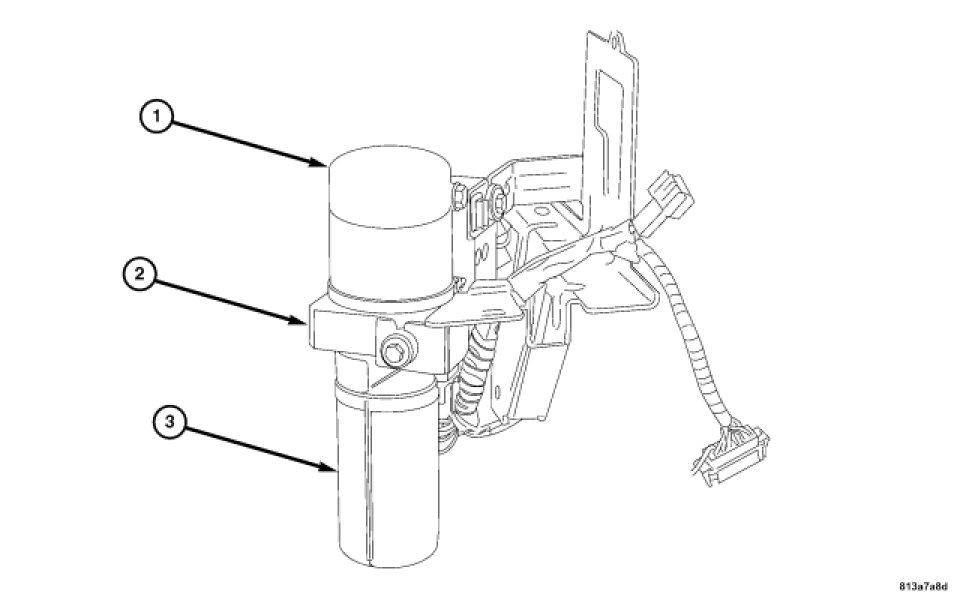

The Convertible Top is equipped with a stand alone Power Top Hydraulic Assembly. The Power-Packer(R) Electrohydraulic Pump consists of a 12 volt DC reversible permanent-magnet motor (3), Reservoir (1), Gear Pump (2), Solenoids, and Rotational Relays.
