Installation

INSTALLATION

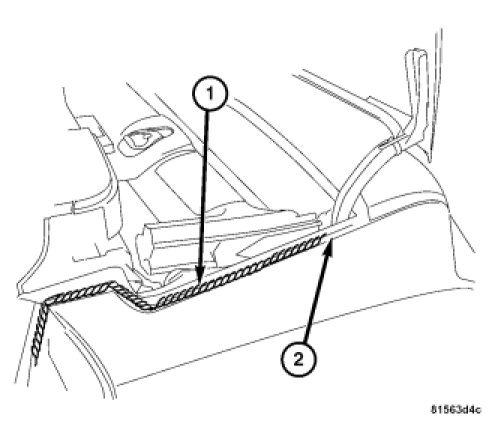

1. Apply a bead of Butyl(R) 230 mm (9.0 in.) long (1) along the inside edge of the tonneau opening sill (2), starting from the front.

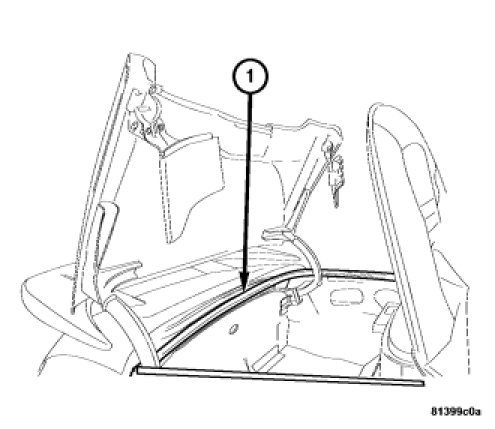

2. Position the weatherstrip (1) on the tonneau cover opening.
3. Firmly press downward to seat the weatherstrip in the flange.
4. Close the convertible top.
