Sport Bar - Removal

REMOVAL





1. Tilt both of the seats forward.
2. Remove the sports bar B-pillar trim on each side by removing the screws.
3. Remove the umbrella hooks (1) by removing the screws.
4. Remove the sports bar seat bezel trim on each side by pulling the front sports bar trim out slightly, and sliding the sports bar seat belt bezel upward.

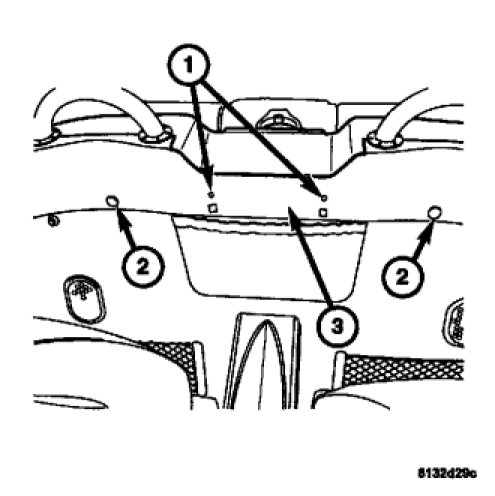

5. Remove the front sports bar trim panel (3) by removing the two plastic retainers (2).

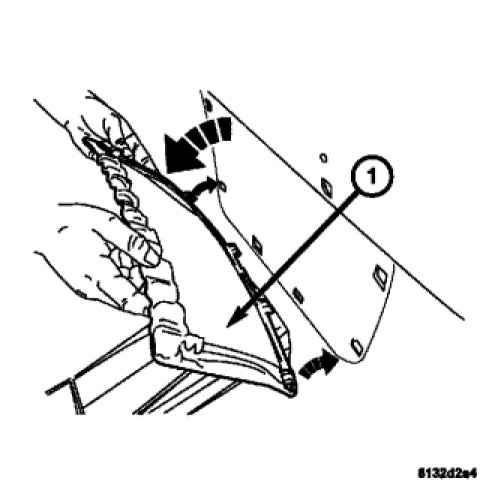

6. Remove the cargo pouch (1) by pulling it out and down from the rear cargo carpet.




7. Remove the rear sports bar trim panel by removing the bolt (1) from both sides.

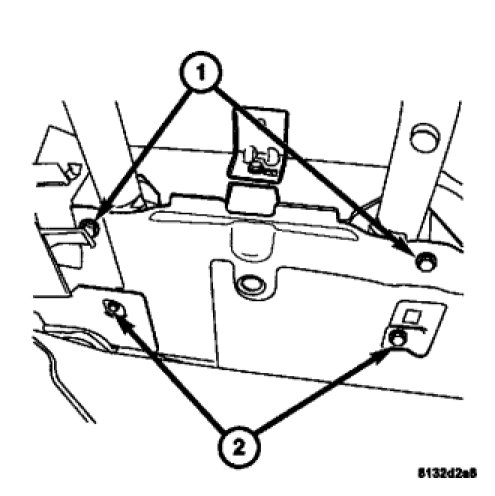

8. Reposition the rear cargo carpet to access the sports bar mounting bolts then remove the sports bar mounting bolts (1, 2).
9. Pull straight up on the sports bar removing it from vehicle.
