Sport Bar - Installation

INSTALLATION





1. Install the sports bar then install the sports bar mounting bolts (1, 2).

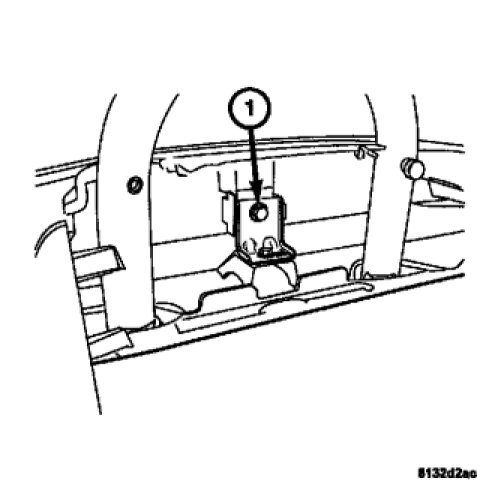

2. Install the rear sports bar trim panel then install the sports bar trim panel bolts (1).




3. Reposition the rear cargo carpet to the correct position and then install the front sports bar trim panel (3) by installing the plastic retainers (2).
4. Install the sports bar seat bezel trim on each side.
5. Install the umbrella hooks (1).




6. Install the cargo pouch (1).
7. Install the sports bar B-pillar trim on each side.
8. Tilt both of the seats back.
