Both Power Mirrors Inoperative

*BOTH POWER MIRRORS INOPERATIVE









For a complete Power Mirrors Circuit Diagram, Power Mirrors.

Diagnostic Test

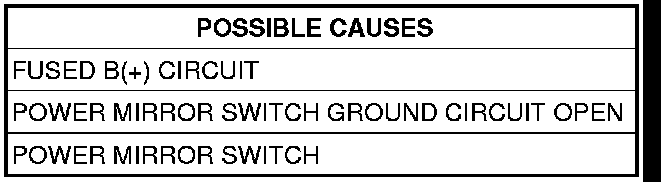

1. MEASURE POWER MIRROR SWITCH FUSED B(+) CIRCUIT VOLTAGE
NOTE: Inspect Fuse 6 located in the Underhood Accessory Fuse Block. If the fuse is open, repair the cause of the open fuse before continuing.





Turn the ignition off.
Disconnect the Power Mirror Switch harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

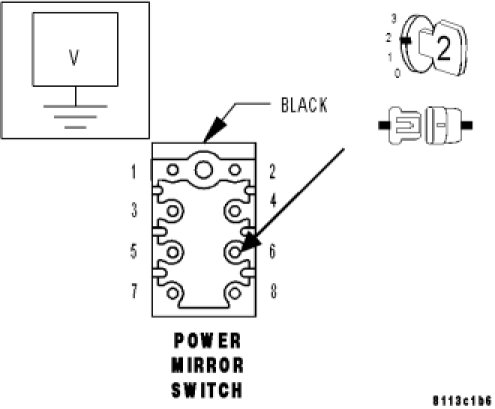

Measure the voltage of the Fused B(+) circuit at the Power Mirror Switch harness connector.
Is the voltage above 10 volts?

Yes

- Go to 2

No

- Repair the Power Mirror Switch Fused B(+) circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test

2. MEASURE POWER MIRROR SWITCH GROUND CIRCUIT RESISTANCE




Turn the ignition off.

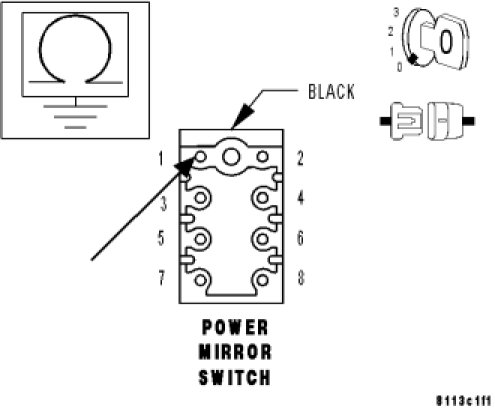

Measure the resistance between ground and the Power Mirror Switch harness connector.
Is the resistance below 5.0 ohms?

Yes

- Replace the Power Mirror Switch. Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Repair the Ground circuit between the Power Mirror Switch harness connector and ground for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test
