Automatic Day/Night Mirror - Removal

REMOVAL





1. Disconnect the negative battery cable.

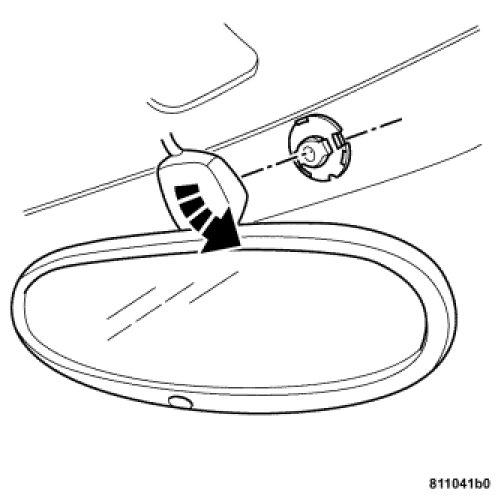

2. Insert a 5 mm metal dowel into the hole on the windshield side of the mirror base.
3. Rotate the mirror base approximately 90 degrees to the left or right.
4. Remove the courtesy lamp. Removal.
5. Disconnect the mirror harness connector.
6. Feed the harness connector and harness past the opening in the headliner and remove the mirror assembly.
