Installation

INSTALLATION

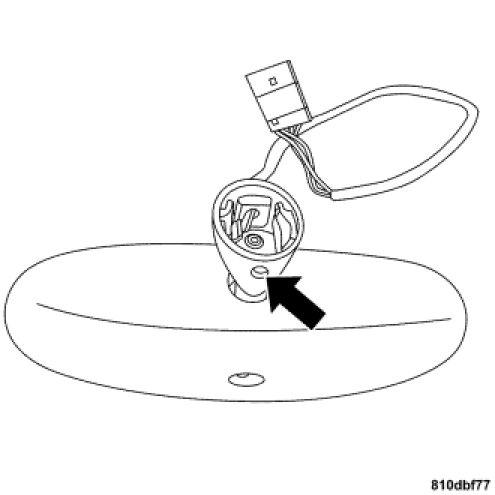

1. Feed the mirror harness connector into the headliner and connect.
2. Install the courtesy lamp. Installation.

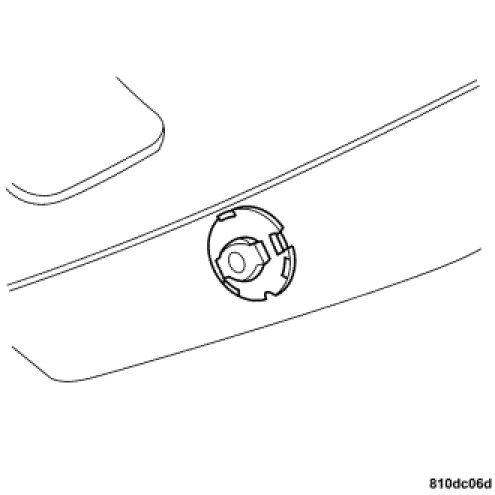

3. Position the mirror base over the mounting plate so that it is flush with the windshield surface.




4. Rotate the mirror base approximately 90 degrees until the hole is positioned downward.
5. Connect the negative battery cable.
