Instrument Cluster Cover

INSTRUMENT CLUSTER COVER

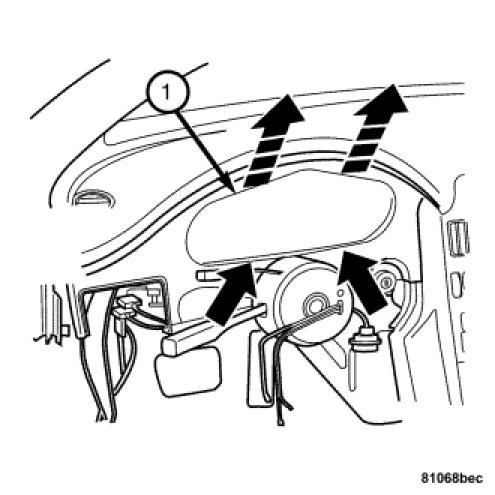

1. Tip the instrument cluster cover toward the rear at the top, then lift it over the jacket tube covering and simultaneously guide the adjustment knobs through the cover.
2. Connect the instrument cluster cover (1) to the instrument panel top section.
3. Install the screws attaching the instrument cluster cover to the lower instrument panel.
4. Install the sentry key antenna ring to the key cylinder.
5. Install the lower instrument panel. Instrument Panel - Installation.
6. Install the steering wheel. Installation.
