Center Console (Front)

CENTER CONSOLE (FRONT)





1. Remove the lower instrument panel (2). Instrument Panel - Removal.




2. Remove the instrument cluster cover.Instrument Panel - Removal.
3. Remove the shifter cover and bezel. Disconnect the power window harness connectors.
4. Remove the rear center console. Center Console - Removal.

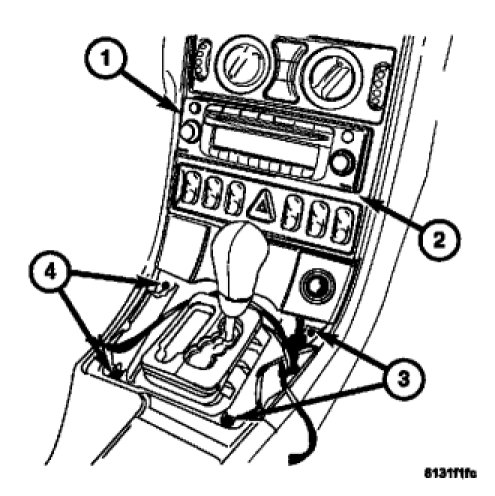

5. Remove the radio (1). Removal.




6. Remove the center console cover. by removing the two screws (1) in the radio hole. Then disconnect the switch panel harness connectors.

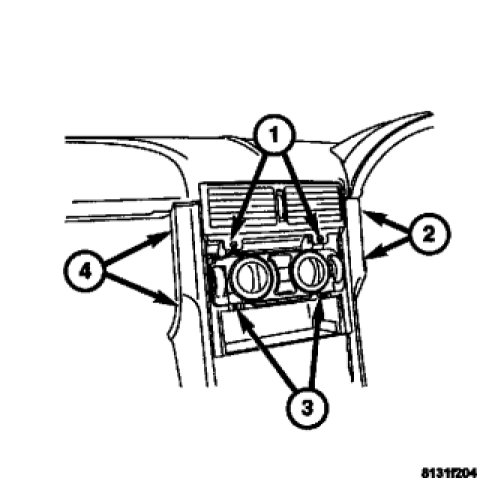

7. Remove the A/C heater control module by removing the screws (3) and disconnecting the harness connector from behind.
8. Remove the screws (4 and 2) from the sides of the center console the I/P.
9. Remove the center console (2) from the vehicle.
