Center Console Cover

CENTER CONSOLE COVER

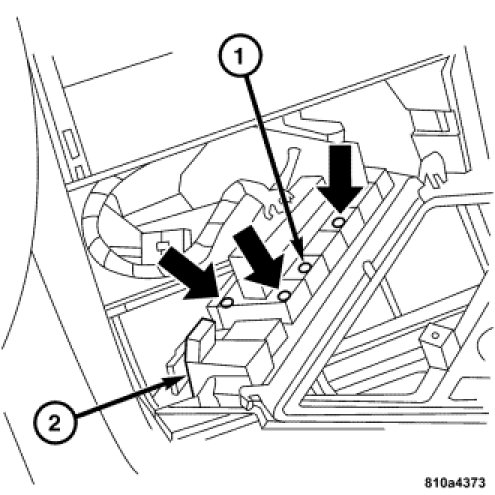

1. Install the console switch group (1) to the cover.
2. Connect the cockpit switch group to the catch lugs (2).




3. Push the cover (2) toward the front at top on the instrument panel top section.
4. Install the screws (1) in the radio cutout.




5. Install the radio.Installation.
