Carpet (Right Side)

CARPET (RIGHT SIDE)





1. Remove the front seat. Seat - Removal.
2. Remove the rear center console. Center Console - Removal.
3. Remove the cover on the center console. Center Console - Removal.
4. Remove the ashtray housing with the stowage compartment in the front center console. Center Console - Removal.
5. Remove the air outlet cover in the footwell.
6. Remove lower instrument panel (right). Instrument Panel - Removal.
7. Removing the door sill trim plate (4). Removal
8. Remove the kick panel (2) in the right footwell. Pull the edge guard (1) off in the area of the kick panel (2). Remove the cap (3) with a suitable tool, then remove the screw.




9. Unhook the storage pocket and remove it from the vehicle.
10. Disconnect the connector from the parking brake switch (1).
11. Remove the plugs and pull off the edge protector at the rear in the lower area.




CAUTION: Do not damage electrical and pneumatic lines!

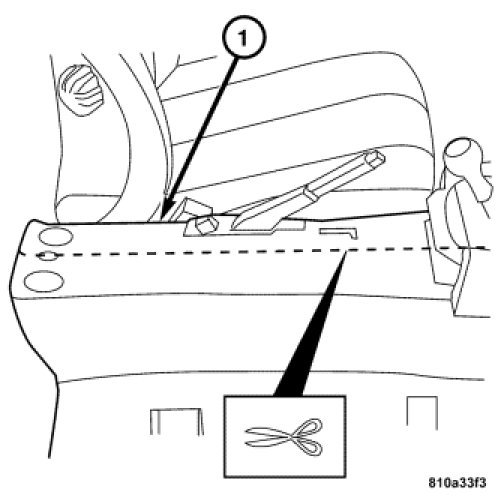

12. Cut the carpet (1) in the transmission tunnel area along the dotted lines with a sharp knife.




CAUTION: Do not damage electrical and pneumatic lines!

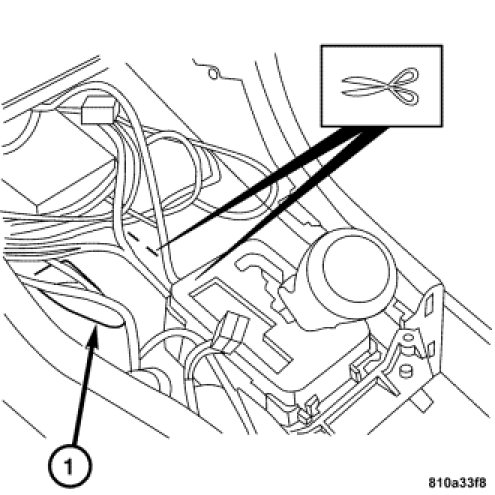

13. Cut the carpet (1) in the shift lever module.




CAUTION: Do not damage electrical and pneumatic lines!

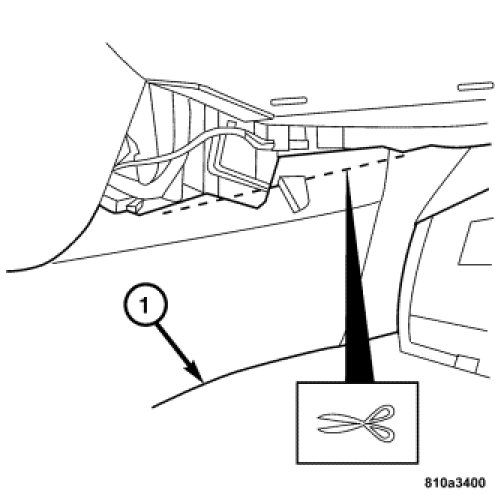

14. Cut the carpet (1) in the footwell area under the front center console.
15. Remove the carpet (1) below the center console, then lift at the rear and then remove it from vehicle.
