Carpet (Right Side)

CARPET (RIGHT SIDE)





NOTE: Before installing floor covering, clean vehicle passenger compartment in area of floor covering.

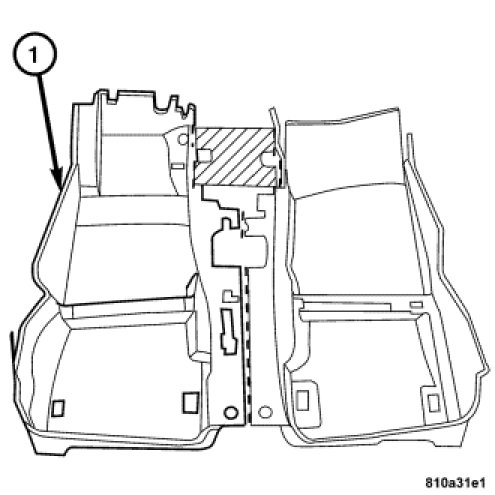

1. Prepare the carpet (1) for installation. Cut the new carpet (1) along the dotted line with a suitable tool and remove the section below the heater (cross-hatched).




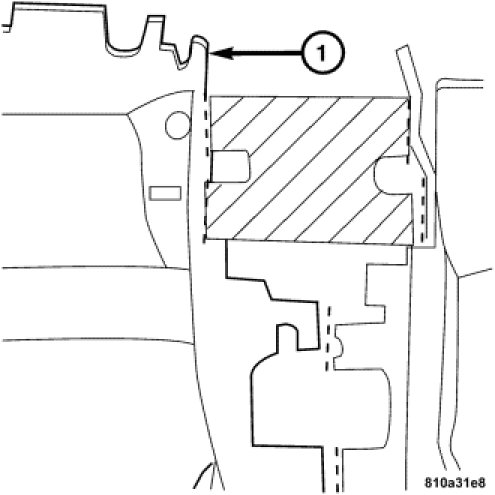

2. Install the new section in the heater box area (cross-hatched).




3. Install the carpet by inserting the cut edge in the front area below the center console while simultaneously guiding the parking brake lever (2) and the electrical leads (1) for the passenger's seat through the carpet.

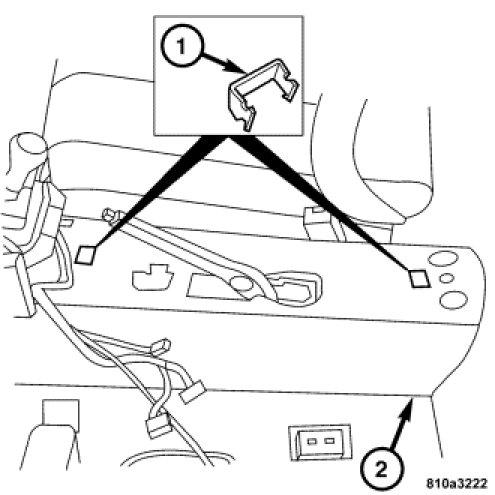

4. Expose the lines in the area of the center console and attach the two halves of the floor covering at the front and rear with clips (1) along the cutting line. For this purpose cut slits in both of the carpet halves with a blade and then insert the clips (1).
5. Install the plugs and the edge protector at the rear in the lower area.
6. Connect the electrical connector to the parking brake switch.
7. Install the storage pocket.




8. Install the paneling (2) in the left footwell.

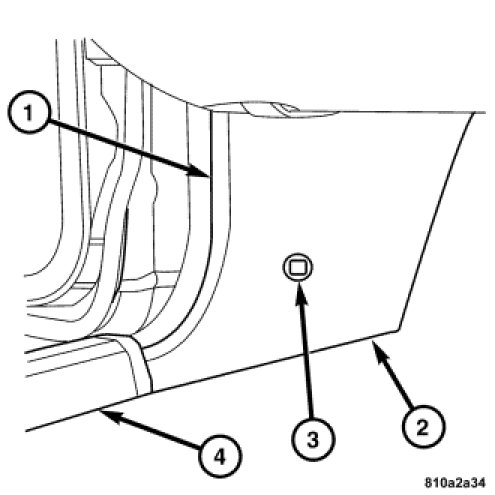

9. Install the door sill trim plate (4). Installation. Install the edge guard (1) in the area of the paneling (2). Install the screw (3) then install the cap.
10. Install the cover below instrument panel. Instrument Panel - Installation.
11. Install the air outlet cover in the footwell.
12. Install the ashtray housing with the stowage compartment in the front center console. Center Console - Installation.
13. Install the cover on the center console. Center Console - Installation.
14. Install the rear center console. Center Console - Installation.
15. Install the front seat. Seat - Installation.
