Carpet (Left Side)

INSTALLATION - CARPET (LEFT SIDE)





NOTE: Before installing the carpet (1), clean the vehicle passenger compartment in the area of the floor covering.

1. Prepare the carpet (1) for installation by cutting the new carpet along the dotted line with a suitable cutting device and remove the section below the heater (cross-hatched).




2. Install the section of carpet (1) below the heater (cross-hatched).

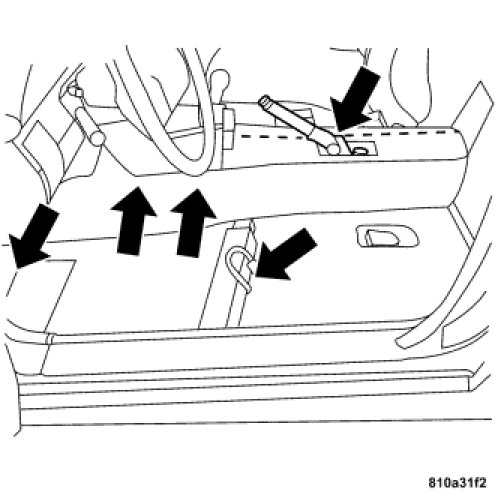

3. Install the carpet by inserting the cut edge in the front area below the center console, while simultaneously guiding the parking brake lever, kick-down switch, welded pin for the accelerator pedal and the electrical leads for the driver's seat through the carpet (arrows).




4. Expose the lines in the area of the center console and then attach the two halves of the carpet at the front and rear with clips (1) along the cutting line. For this purpose, cut slits in both carpet halves (2) with a blade and then insert the clips (1).

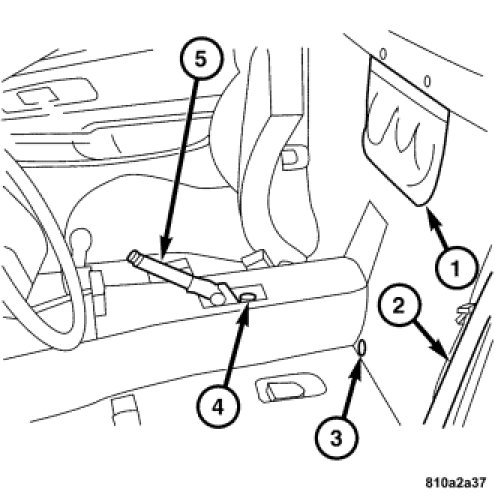

5. Install the plugs (3) and then install the rear edge guard (2) in the lower area.
6. Connect the electrical connector (4) to the parking brake (5) switch.
7. Install the storage pocket (1).




8. Install the nut (1) attaching the accelerator pedal to the floor, then install the electrical connector.




9. Install nut (1) attaching the accelerator pedal to the instrument panel structural duct.
10. Install the pedal cover.




11. Install the paneling (2) in the left footwell.
12. Install the door sill trim plate (4). Installation. Install the edge guard (1) in the area of the paneling (2). Install the screw (3), then install the cap.
13. Install the air outlet cover in the footwell.
14. Install the ashtray housing with the stowage compartment in the front of the center console. Center Console - Installation.
15. Install the cover on center console. Center Console - Installation.
16. Install the rear center console. Center Console - Installation.
17. Install the front seat. Seat - Installation.
