Grille - Installation







INSTALLATION





1. Align the bottom grille retainer and snap it into place.

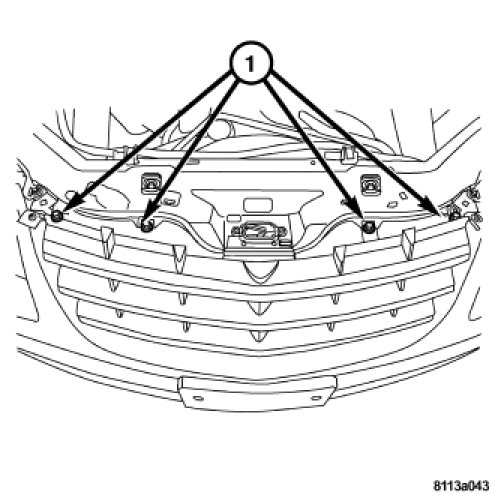

2. Install the four upper retaining screws (1).
3. Close the hood.
