FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2008
>>
Crossfire V6-3.2L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Trunk / Liftgate Weatherstrip
>>
Service and Repair
>>
Removal
Removal
REMOVAL
1.
Using a trim stick or other suitable device, carefully pry up the inner edge.
2.

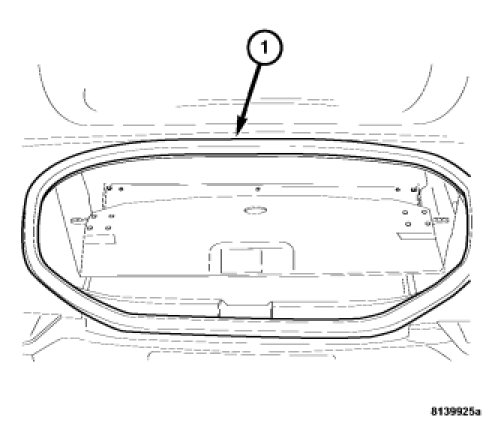

Grasp the edge of the
weatherstrip
(1) and pull outward to remove the seal from the trunk.
