Installation

INSTALLATION





1. Place the gas prop on its upper and lower mounting points and push it in until it clicks.

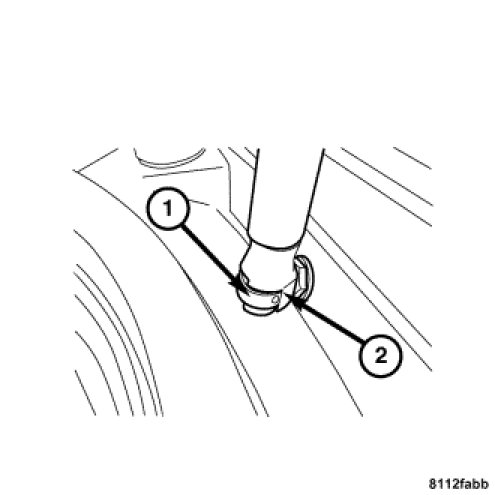

2. Install the upper lock cap (1) on the gas prop (2).




3. Install the lower lock cap (1) on the gas prop (2).
4. Verify the rear liftgate operation.
