Removal - Coupe

REMOVAL - COUPE

LOWER LIFTGATE TRIM PANEL

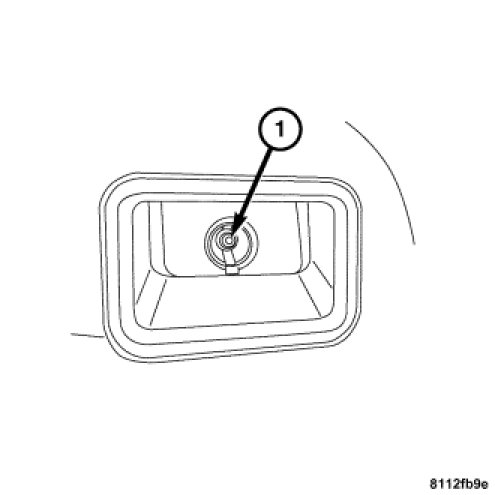

1. Remove the handle trim screw (1).




2. Pull down on the lower liftgate trim panel (1) to release it from the liftgate.

UPPER LIFTGATE TRIM PANEL





1. Remove the lower trim panel. Refer to Lower Liftgate Trim Panel.
2. Remove the two screws (1) attaching the upper liftgate trim panel (2) to the liftgate.
3. Pull down on the upper liftgate trim panel (2) to release it from the liftgate.
