Installation

INSTALLATION

ASSEMBLY





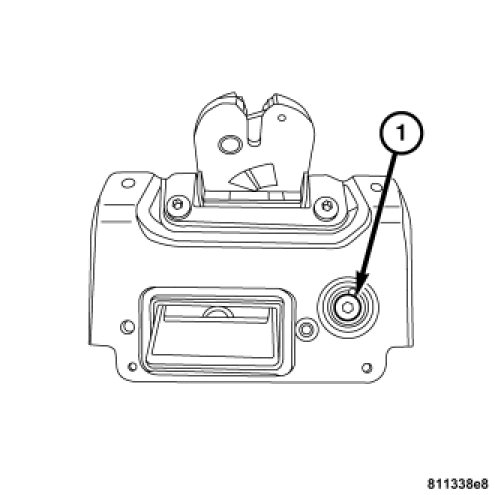

1. Install the liftgate release handle assembly on the latch bracket. Install the retaining bolt (1). Tighten to 8 Nm (71 in. lbs.).

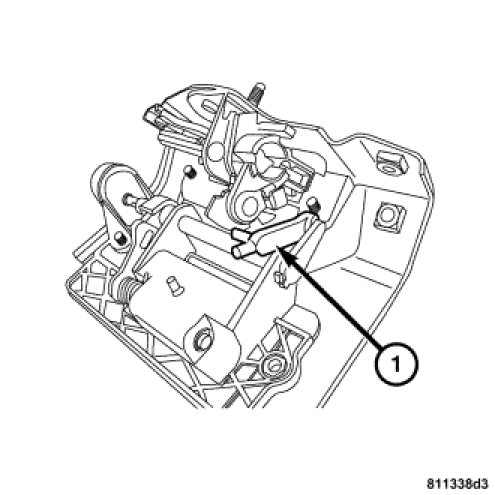

2. Connect the rear liftgate release handle linkage (1).

INSTALLATION

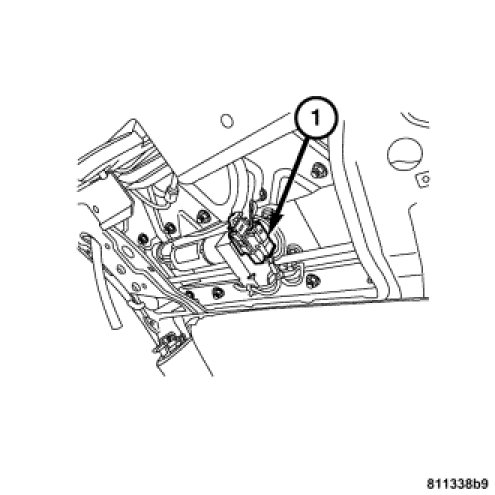

1. Connect the pneumatic harness connector (2) and the harness connector (1) to the rear latch assembly.




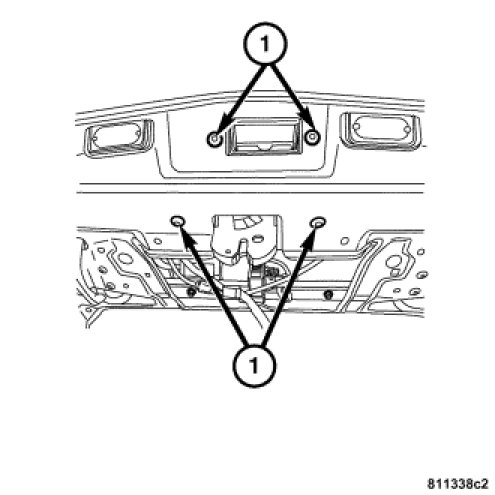

2. Install the rear latch assembly into the rear liftgate. Install the retaining bolts (1). Tighten to 8 Nm (71 in. lbs.).

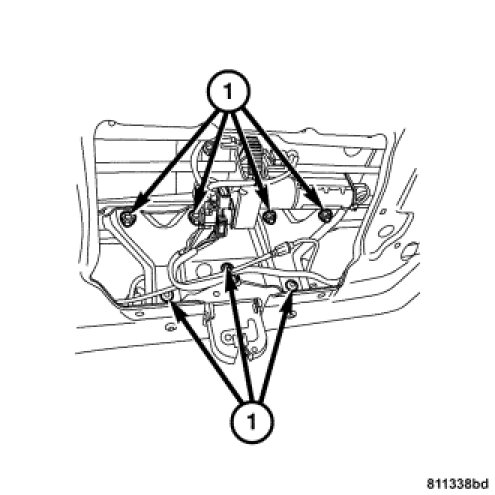

3. Install the rear latch assembly bracket and then install the seven retaining nuts and bolts (1). Tighten to 8 Nm (71 in. lbs.).




4. Connect the rear spoiler harness connectors (1).
5. Install the rear liftgate trim panel. Service and Repair.
6. Connect the negative battery cable.
