Decklid - Installation

INSTALLATION





CAUTION: To avoid paint damage, have an assistant help while installing the decklid.

NOTE: Loosely install the decklid retaining bolts until decklid has been properly adjusted for fit.

1. With the aid of an assistant, position the decklid on the vehicle.

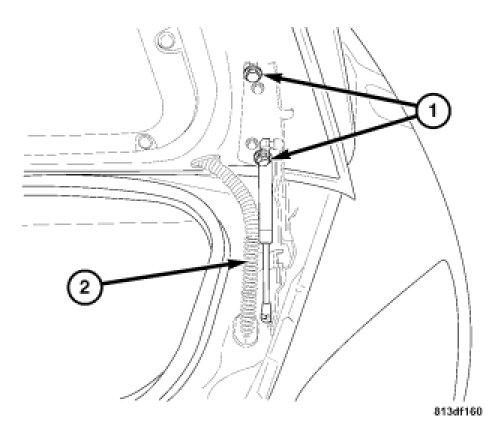

2. Loosely install the two right side decklid retaining bolts.
3. Align the decklid with the previously outlined witness marks.
4. Connect the wiring harness connector (2) to the decklid.

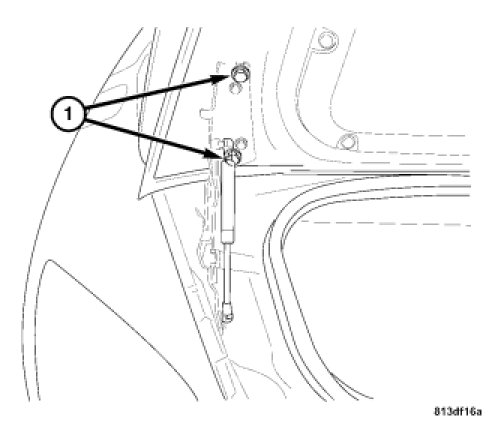

5. Loosely install the two left side decklid retaining bolts.
6. Verify fit of decklid to vehicle body. Adjust as necessary.
7. Tighten decklid retaining bolts to 23 Nm (203 in. lbs.).
