Removal







REMOVAL





1. Raise and support the vehicle.

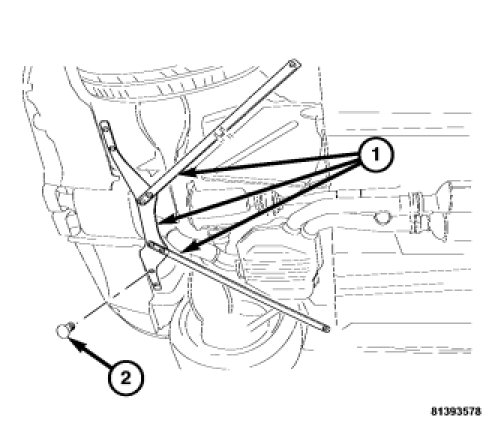

2. Remove the bolts (2) from the support brace.
3. Remove the brace (1) from the vehicle.
