Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Tow Sensor
>>
Service and Repair
>>
Anti-Theft Tow Sensor
>>
Removal
Removal
REMOVAL
1.
Remove the right side trunk inner trim panel.
2.
Remove the bolt (1) from the anti-theft
tow sensor
bracket.
3.

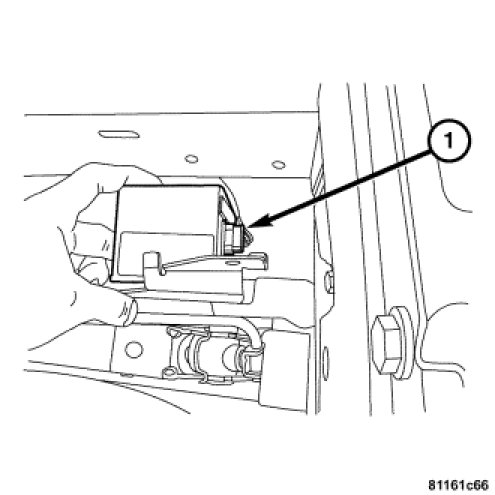

Disconnect the anti-theft
tow sensor
electrical connector (1).
