Tow-Away Alarm Switch

Component ID: 344

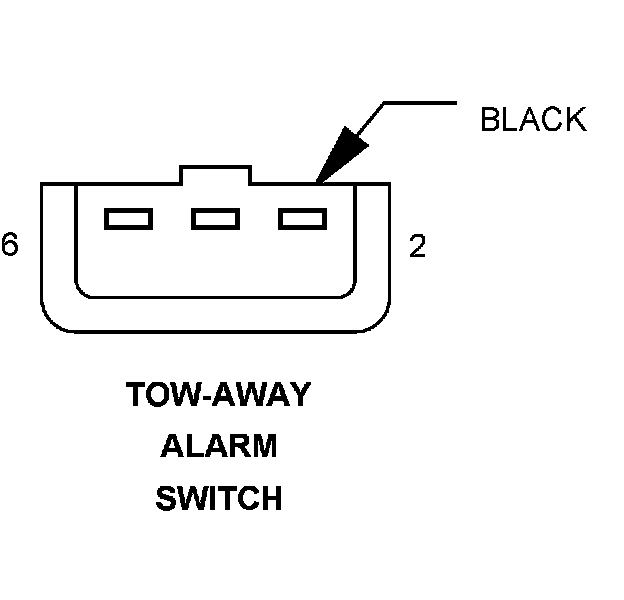

Component : TOW-AWAY ALARM SWITCH

Connector:
Name : TOW-AWAY ALARM SWITCH
Color : BLACK
# of pins : 3




2 22RD/DG TOW-AWAY ALARM SWITCH LED CONTROL
4 - -
6 20WT/DG TOW-AWAY ALARM SWITCH SENSE

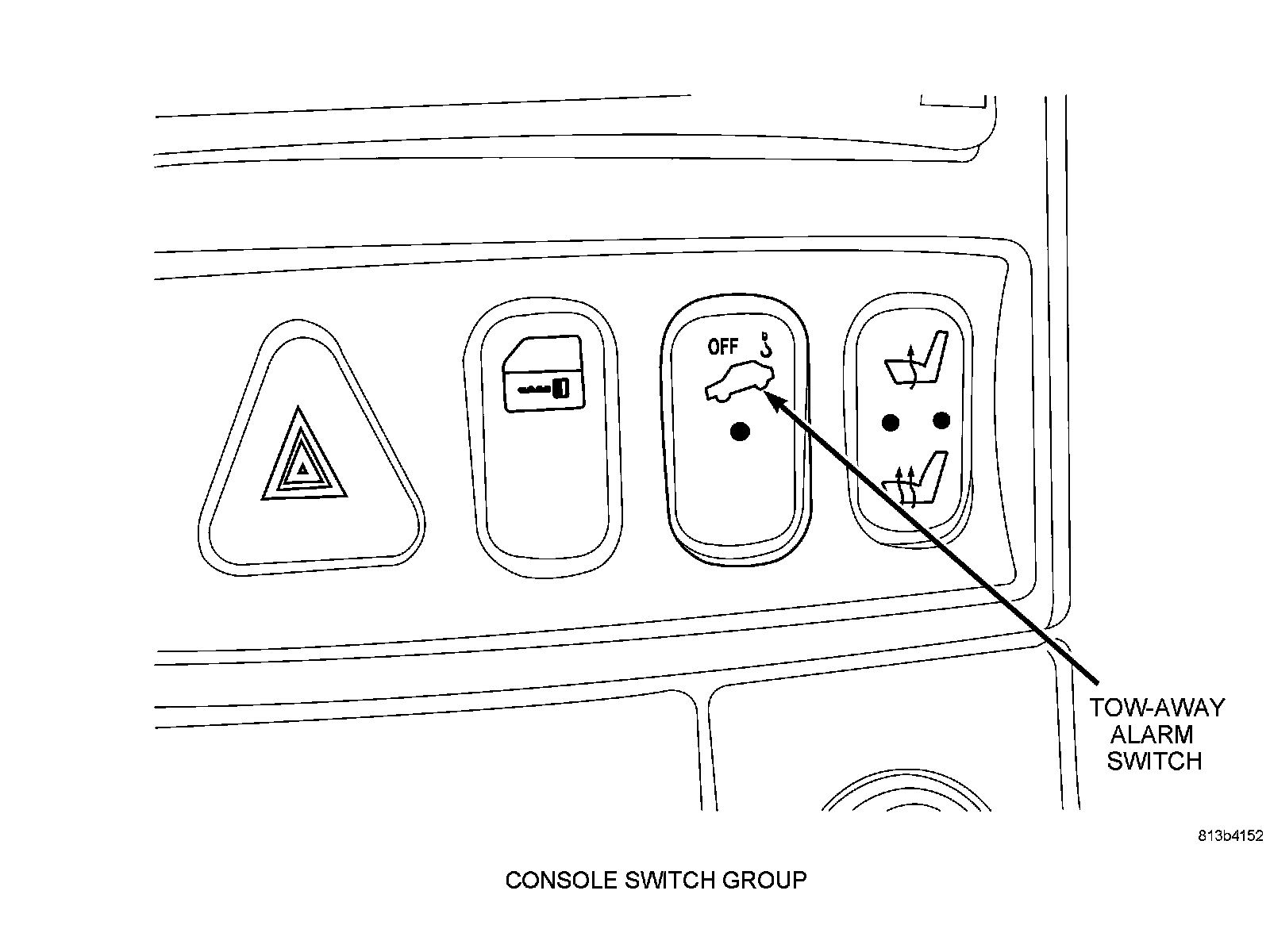

Component Location - 14
