Hood Ajar Switch - Removal
Hood Ajar Switch - Removal
REMOVAL

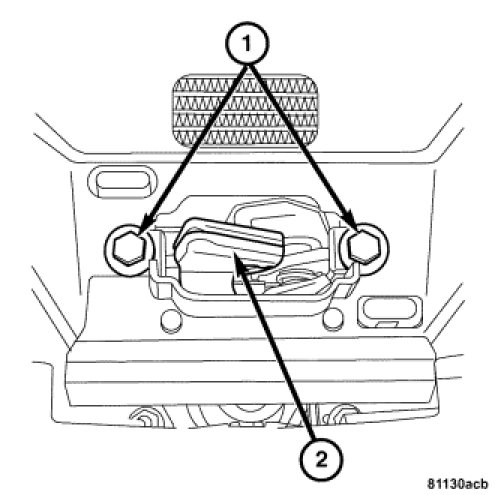

The Hood Ajar Switch is an integral part of the hood latch assembly (2) and cannot be adjusted or repaired. If faulty, worn, or damaged, the entire hood latch assembly must be replaced.
