Siren - Removal
Siren - Removal
REMOVAL
1.
Remove the cowl grille.
Cowl Moulding / Trim
.
2.

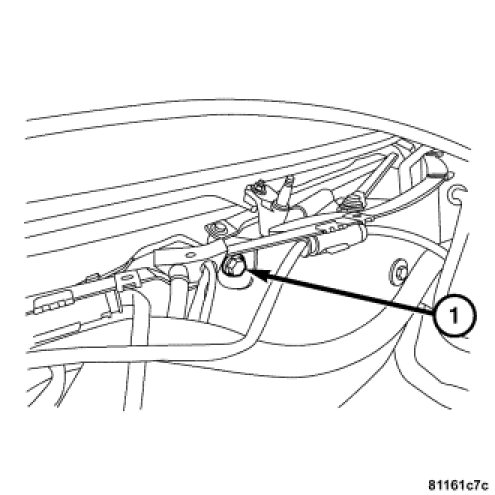

Remove the bolt (1) from the siren bracket.
3.
Disconnect the siren electrical connector (1).
