Enhanced Accident Report Driver Circuit Low

P2513 - ENHANCED ACCIDENT REPORT DRIVER CIRCUIT LOW





When Monitored and Set Condition

- When Monitored: Ignition on.
- Set Condition: The Occupant Restraint Controller (ORC) periodically sends out a signal to the Powertrain Control Module (PCM). If the PCM does not receive the signal from the ORC, the PCM will set this DTC.

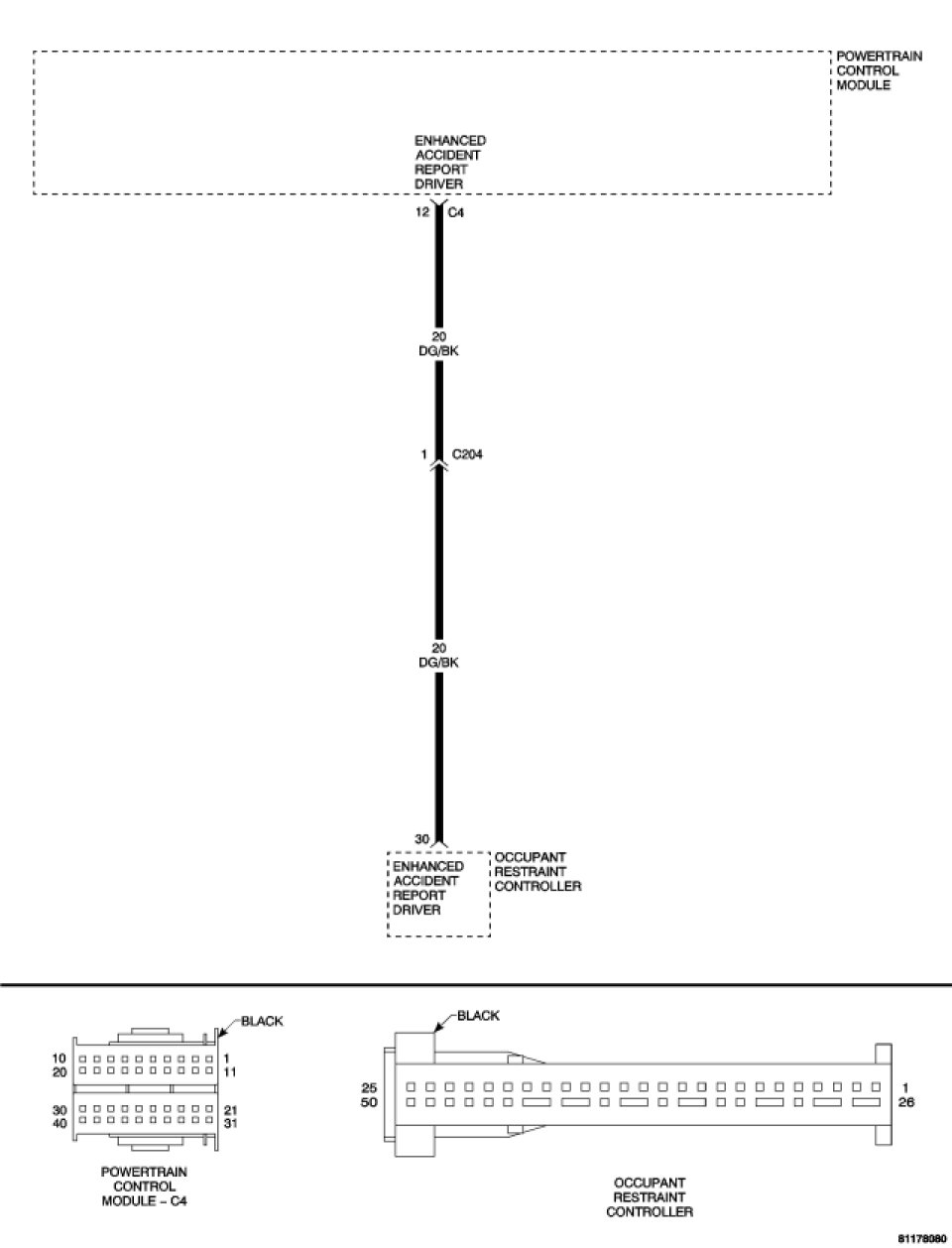

For a complete Powertrain Control Module Circuit Diagram, Schematics and Diagrams.

Diagnostic Test

1. CHECK FOR CURRENT DTC
Turn the ignition on.
With the scan tool, read PCM DTCs.
Is this DTC present?

Yes

- For complete diagnosis of this DTC, refer to (P2513) ENHANCED ACCIDENT REPORT DRIVER CIRCUIT HIGH. Enhanced Accident Report Driver Circuit High

No

- Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

NOTE: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

NOTE: Check for any Technical Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform POWERTRAIN VERIFICATION TEST - VER 2. Powertrain Verification Test

No

- The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
