P0763 - 3-4 SOLENOID CIRCUIT SHORT TO GROUND





When Monitored and Set Condition

- When Monitored: Always monitored with system active at each ignition cycle.
- Set Condition: If the TCM detects a short to ground on the solenoid control circuit or a solenoid control circuit shorted to ground in the TCM.

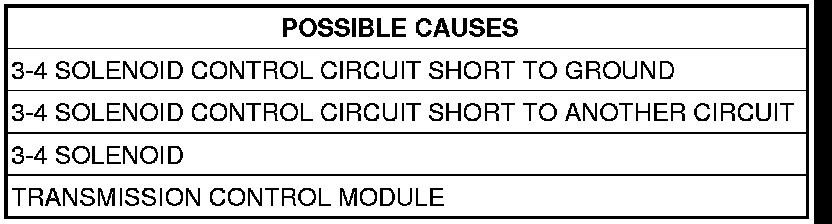

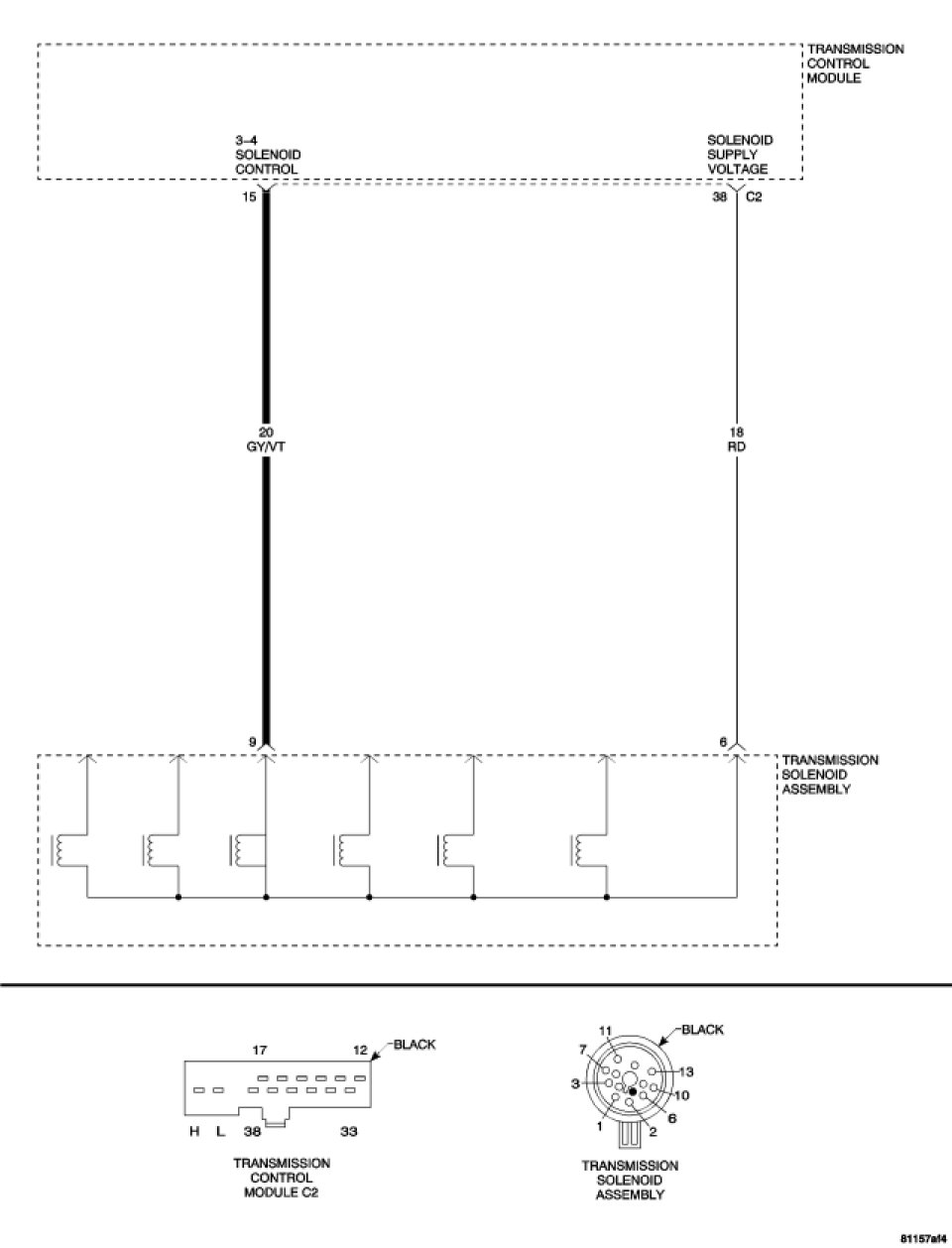

For a complete Transmission Control Module Circuit Diagram, [1][2]Automatic Transmission/Transaxle.

Diagnostic Test

1. CHECK FOR CURRENT DTC
Turn the ignition on.
With the scan tool, read Transmission DTCs.
Is this DTC present?

Yes

- For complete diagnosis of this DTC, refer to (P0763) 3-4 SOLENOID CIRCUIT. 3-4 Solenoid Circuit

No

- Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

NOTE: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

NOTE: Check for any Technical Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Transmission Verification Test

No

- The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
