P0714

P0714 - TRANS TEMP SENSOR ERRATIC





When Monitored and Set Condition

- When Monitored: When transmission temperature is below 170°C (338°F).
- Set Condition: When there is a 10°C (18°F) variation between each transmission temperature sensor read. If the condition is not present (after an ignition cycle), the DTC will be set to Stored (Intermittent) status.





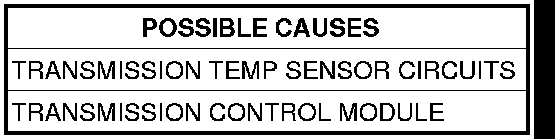

For a complete Transmission Control Module Circuit Diagram, [1][2]Automatic Transmission/Transaxle.

Diagnostic Test

1. PRE-DIAGNOSTIC CHECK OUT
NOTE: Low fluid level can be the cause of many transmission problems. If the fluid level is low, locate and repair the leak then check and adjust the fluid level.

NOTE: Always perform diagnostics with a fully charged battery to avoid false symptoms.

With the scan tool, read Engine DTCs. Check and repair all engine DTCs prior to performing transmission symptom diagnostics.
With the scan tool, read and record all Transmission DTCs.

NOTE: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Repair as necessary.
Most DTCs set on start up but some must be set by driving the vehicle such that all diagnostic monitors have run.

NOTE: Check for any Technical Service Bulletins that may apply.

Perform this procedure prior to Symptom diagnosis.

Continue

Go To 2

2. TRANSMISSION TEMP SENSOR CIRCUITS
Turn the ignition on.
With the scan tool, monitor the Transmission Temperature.
With the brakes firmly applied, place the gear selector in Drive.
While monitoring the scan tool, wiggle the wires and connectors from the TCM to the Transmission Solenoid Assembly.
Did the transmission temperature fluctuate while wiggling the wires?

Yes

- Repair the wiring and/or connectors as necessary.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Transmission Verification Test

No

Go To 3

3. TRANS TEMP SENSOR - PARK NEUTRAL SWITCH
Replace the Transmission Temp Sensor - P/N Switch. Removal.
Perform NAG1 TRANSMISSION VERIFICATION TEST. Transmission Verification Test
With the scan tool, read Transmission DTCs.
Did DTC (P0714) TRANS TEMP SENSOR ERRATIC set again?

Yes

- Replace the Transmission Control Module. Transmission Control Module - Removal.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Transmission Verification Test

No

- Test Complete.
