9000 - 9999: 9909

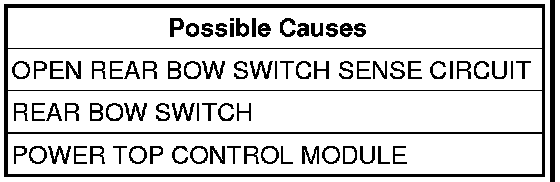

9909 - REAR BOW SWITCH SENSE CIRCUIT OPEN





- When Monitored: Continuous with the ignition on.
- Set Condition: When the Power Top Control Module (PTCM) senses voltage on the Rear Bow Switch Sense circuit when the convertible top is up.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. Read DTCs
Turn the ignition on.
With the scan tool, read Current DTCs.
Are the Rear Bow Switch and the Tonneau Cover Switch Open DTCs set?

Yes

- Check and repair the Switches common ground circuit for a loose, damaged or corroded ground circuit.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test

No

- Go To 2

2. Rear Bow Switch
Turn the ignition off.
Disconnect the Rear Bow Switch harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a fused jumper wire between the Rear Bow Switch Sense circuit and the Rear Bow Switch Ground circuit of the Rear Bow Switch harness connector.
Turn the ignition on.
With scan tool, select Input/Output Display and monitor the REAR BOW SW SENSE.
Does the REAR BOW SW SENSE read "LOCKED"?

Yes

- Replace the Rear Bow Switch.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test

No

- Go To 3

3. Open Rear Bow Switch Sense circuit




Turn the ignition off.
Remove fused jumper wire.
Disconnect the Power Top Control Module C1 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

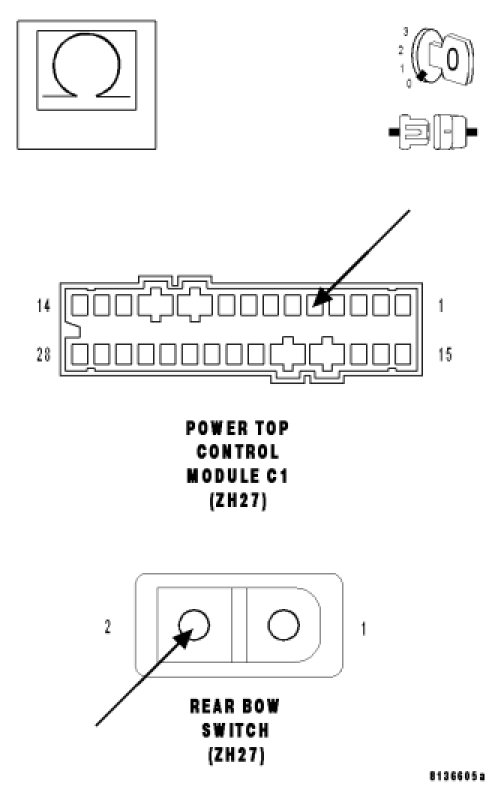

Measure the resistance of the Rear Bow Switch Sense circuit from the Rear Bow Switch harness connector to the Power Top Control Module C1 harness connector.
Is the resistance below 5.0 ohms?

Yes

- Go To 4

No

- Repair the Rear Bow Switch Sense circuit for an open.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test

4. Open Rear Bow Switch Ground circuit




With the ignition off.

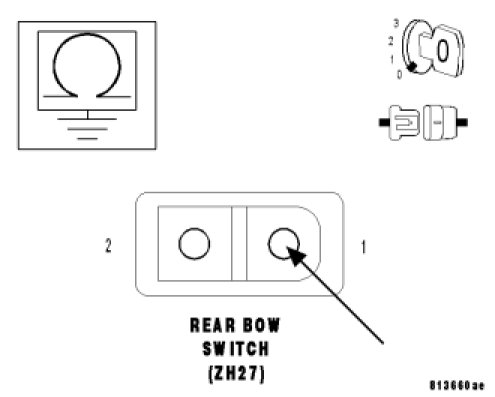

Measure the resistance between ground and the Rear Bow Switch ground circuit.
Is the resistance below 5.0 ohms?

Yes

- Replace the Power Top Control Module.Removal.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test

No

- Repair the Rear Bow Switch Ground circuit for an open.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test
