1861-00 LR WHEEL SPEED CAN MESSAGE NOT VALID

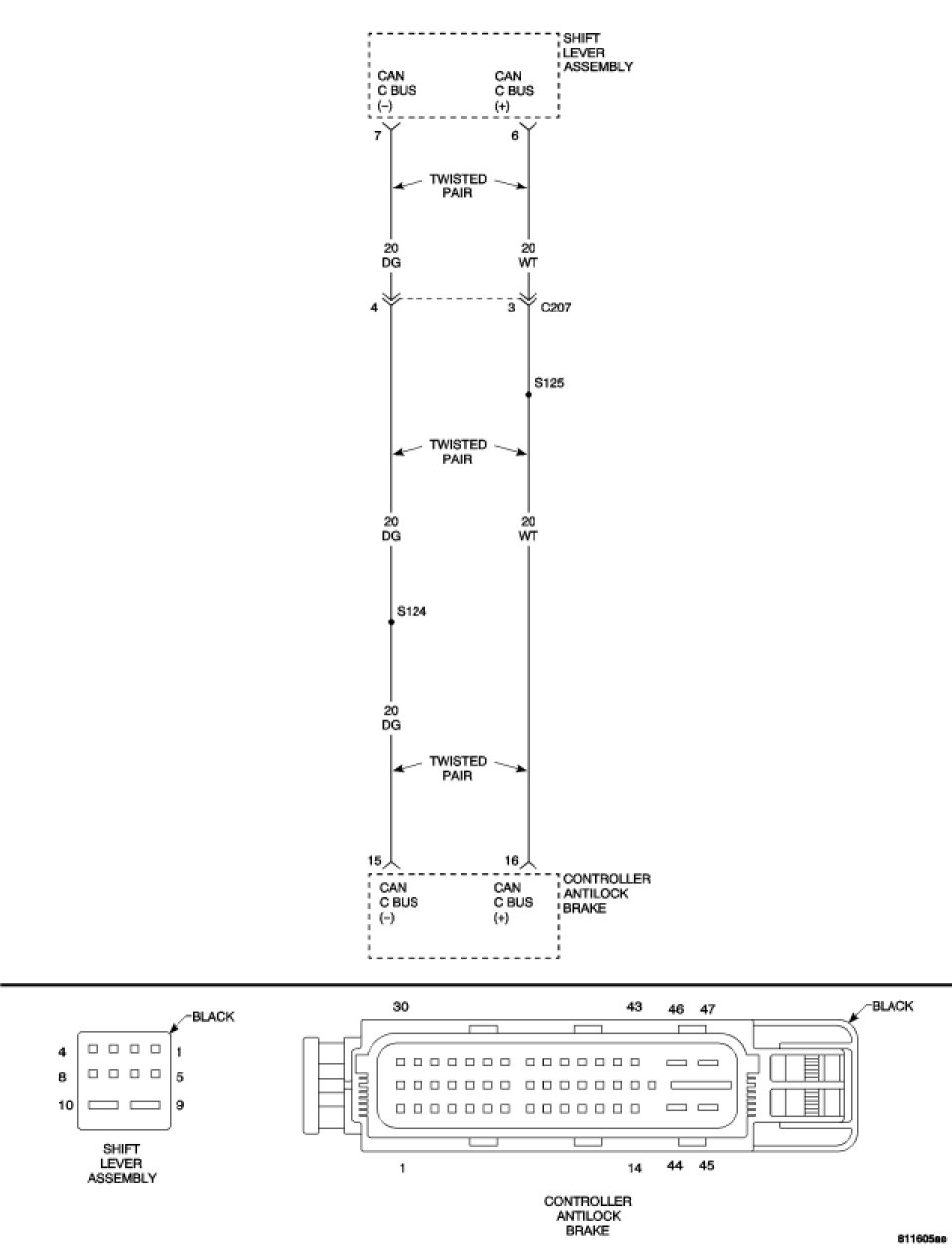

For a complete Shift Lever Assembly Circuit Diagram, [1][2]Automatic Transmission/Transaxle.

Diagnostic Test

1. CAN BUS OR ABS DTC PRESENT
Turn the ignition on.
With the scan tool, read the ABS DTCs.
Are any CAN BUS or Wheel Speed Sensor DTCs present?

Yes

- Diagnose and repair the DTC(s).

No

Go To 2

2. CAB - ABS LR SENSOR MESSAGE
Turn the ignition off.
Replace the Controller Antilock Brake Module. Removal.
Start the engine.
Road test the vehicle.
With the scan tool, read ABS DTCs.
Did DTC LR WHEEL SPEED CAN MESSAGE NOT VALID set again?

Yes

- Replace the Shift Lever Assembly. Manual Transmission/Transaxle - Removal.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Transmission Verification Test

No

Test Complete.
