Power Windows

1282-00 LEFT POWER WINDOW MOTOR CIRCUIT FAILURE

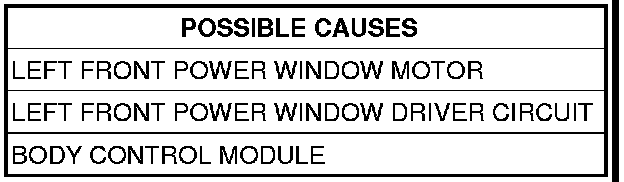

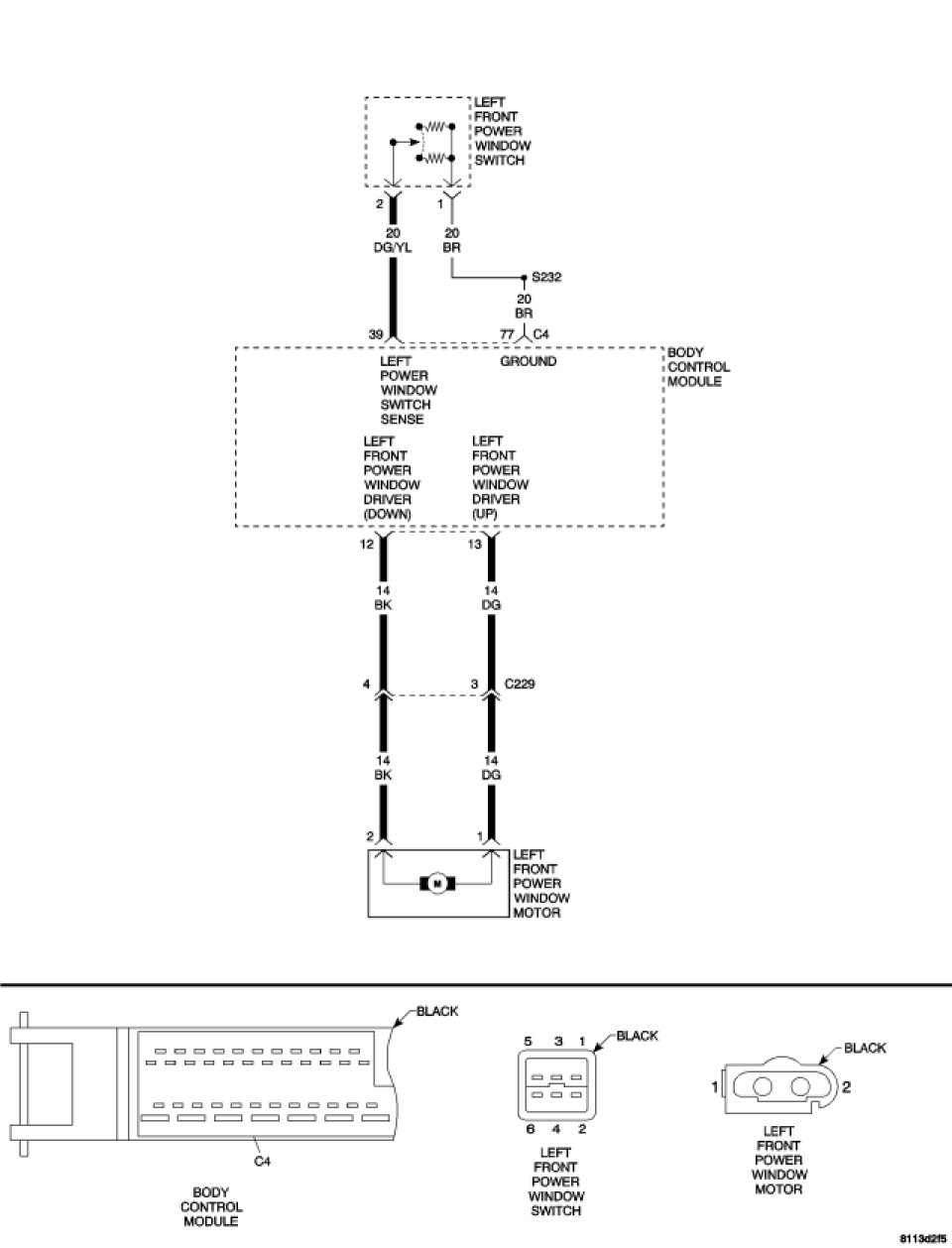

For a complete Power Windows Circuit Diagram, Schematics and Diagrams.

Diagnostic Test

1. TEST THE LEFT FRONT POWER WINDOW MOTOR




Turn the ignition off.
Disconnect the Body Control Module (BCM) C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a fused jumper wire from cavity 12 of the BCM C4 harness connector to B(+).
Connect a second fused jumper wire to cavity 13 of the BCM harness connector and momentarily connect the jumper to ground.
Note the window movement; if the left front window does not move, reverse the jumper wires at the B(+) and ground connections.
Did the left front window move upward or downward?

Yes

- Replace the Body Control Module. Body Control Module - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Go to 2

2. MEASURE LEFT FRONT POWER WINDOW DRIVER CIRCUITS RESISTANCE




With the ignition off.
Disconnect the Left Front Power Window Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

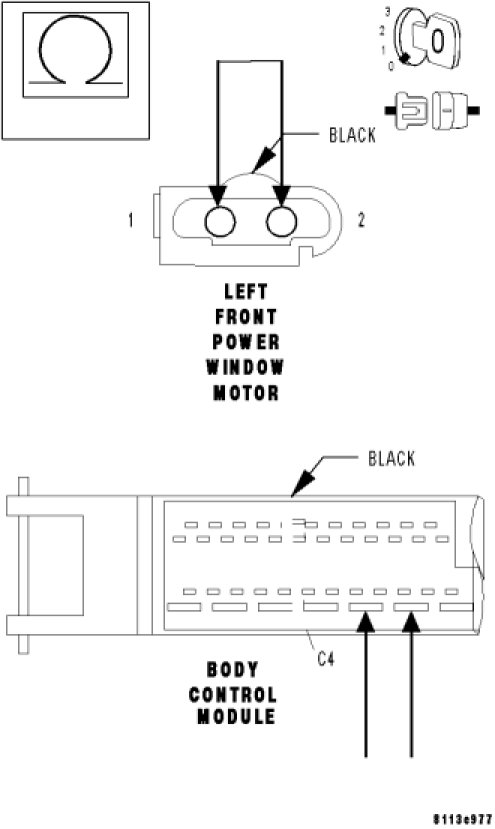

Connect a jumper wire between cavity 1 and cavity 2 of the Left Front Power Window Motor harness connector.
Measure the resistance between cavity 12 and cavity 13 of the BCM C4 harness connector.
Is the resistance below 5.0 ohms?

Yes

- Replace the Left Front Power Window Motor. Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Repair the Left Front Power Window Driver circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test
