Body

1121-04 RIGHT POWER WINDOW SWITCH STUCK





When Monitored and Set Condition

- When Monitored: With the ignition on.

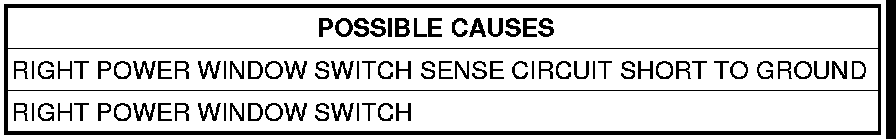

- Set Condition: The Body Control Module (BCM) detects a stuck Right Power Window Switch, or a short to ground on the Right Power Window Switch Sense circuit.





For a complete Body Control Module Circuit Diagram Body - Electrical Diagnostics.

1. POWER WINDOW SWITCH SENSE CIRCUIT SHORT TO GROUND




Turn the ignition off.

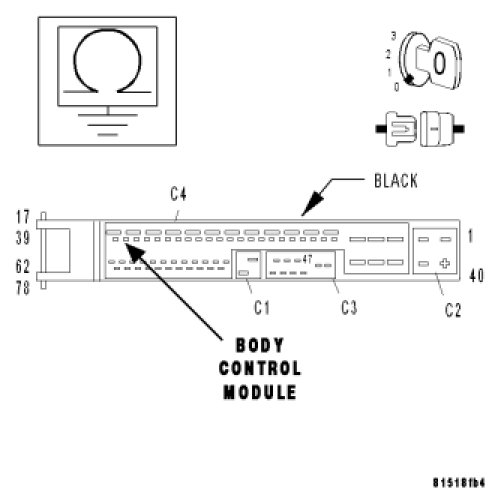

Disconnect the BCM harness connector.
Disconnect the Right Power Window Switch harness connector.

NOTE: Check connector - Clean/repair as necessary.

Measure the resistance between ground and the Right Power Window Switch Sense circuit.
Is the resistance below 100k ohms?

Yes

- Repair the Right Power Window Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Right Power Window Switch.Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
