1000 - 1999: 1037

1037 - NO CAN COMMUNICATIONS WITH YAW RATE/ACCELERATION SENSOR

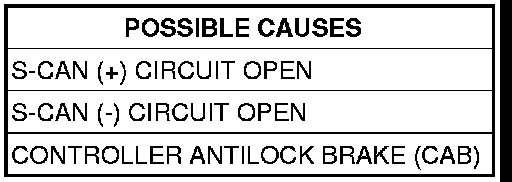

When Monitored and Set Condition

- When Monitored: With the ignition on.
- Set Condition: CAN Bus communication failure between the Controller Antilock Brake (CAB) and the Yaw Rate/Acceleration Sensor.

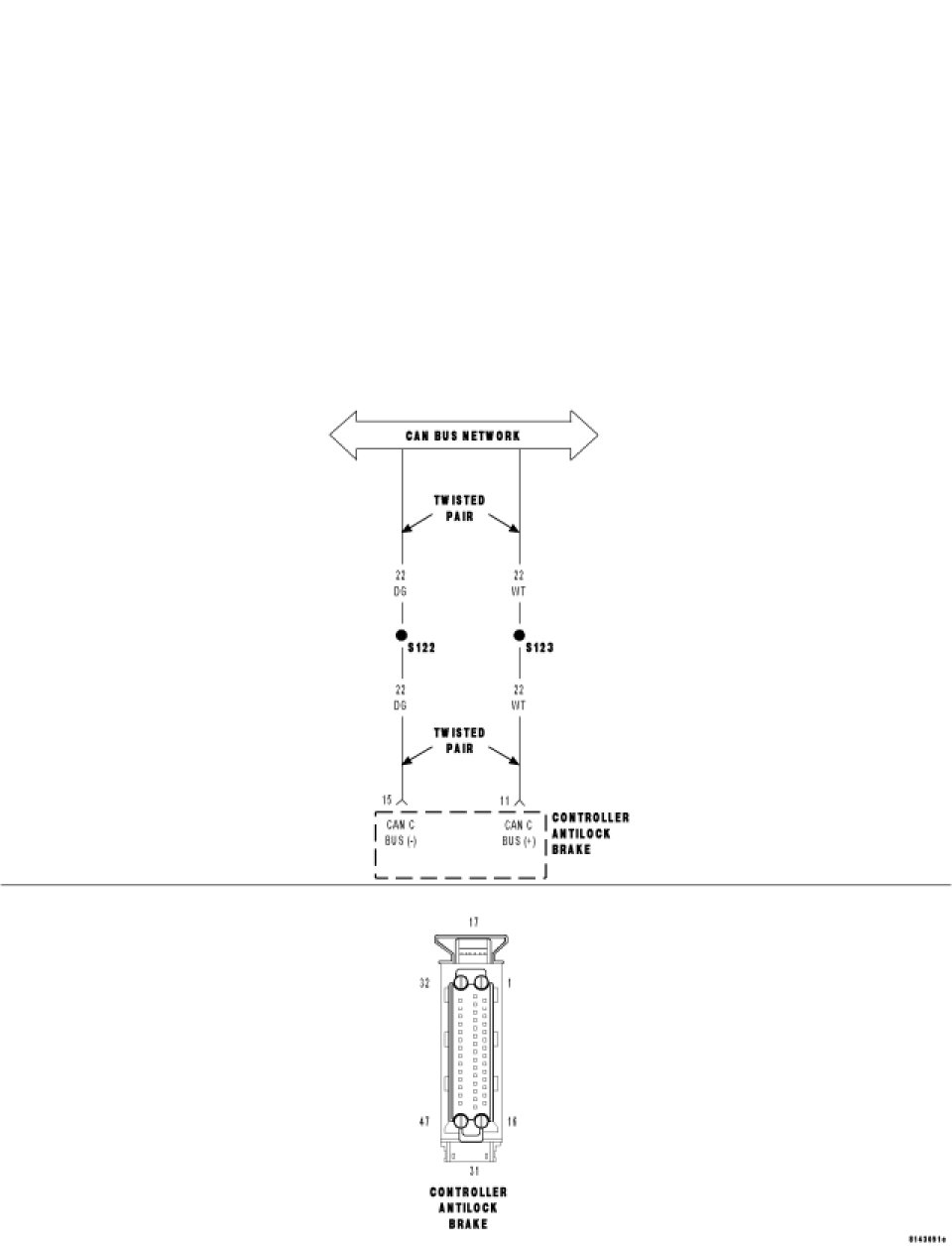

For a complete Antilock Brake System (ABS) Circuit Diagram Brakes - ABS Electrical Diagnostics.

Diagnostic Test

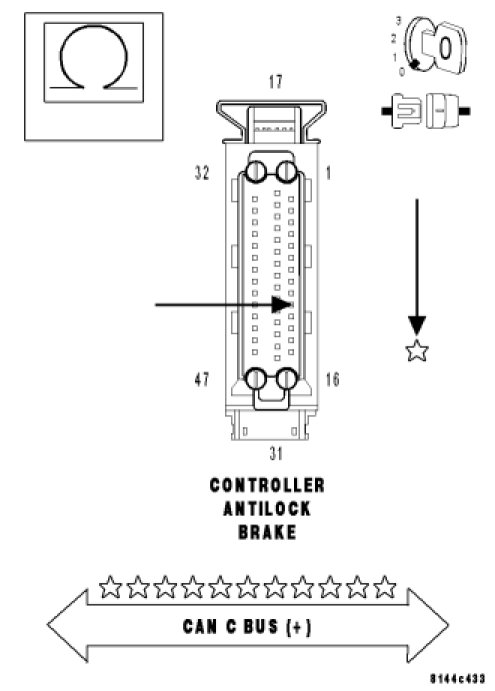

1. MEASURE THE RESISTANCE OF THE S-CAN (+) CIRCUIT




Turn the ignition off.
Disconnect the CAB harness connector.
Disconnect the Yaw Rate/Acceleration sensor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the S-CAN (+) circuit from the CAB harness connector to the Yaw Rate/Acceleration sensor harness connector.
Is the resistance below 1.0 ohm?

Yes

- Go to 2

No

- Repair the S-CAN (+) circuit for an open.
- Perform ABS VERIFICATION TEST. ABS Verification Test

2. MEASURE THE RESISTANCE OF THE S-CAN (-) CIRCUIT




With the ignition off.
Measure the resistance of the S-CAN (-) circuit from the CAB harness connector to the Yaw Rate/Acceleration sensor harness connector.
Is the resistance below 1.0 ohm?

Yes

- Replace the Controller Antilock Brake (CAB) Module. Removal.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Repair the S-CAN (-) circuit for an open.
- Perform ABS VERIFICATION TEST. ABS Verification Test
