1025-00

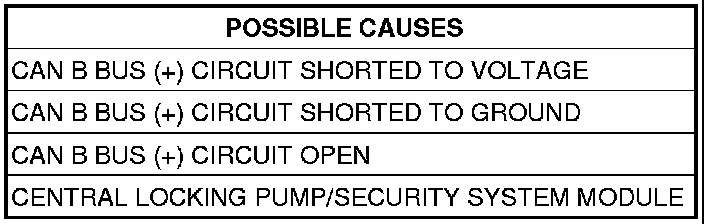

1025-00 CAN B BUS (+) CIRCUIT FAILURE





When Monitored and Set Condition

- When Monitored: Continuous.
- Set Condition: CAN B Bus (+) communication failure between the Body Control Module (BCM) and the Central Locking Pump/Security System Module (CLP/SSM).

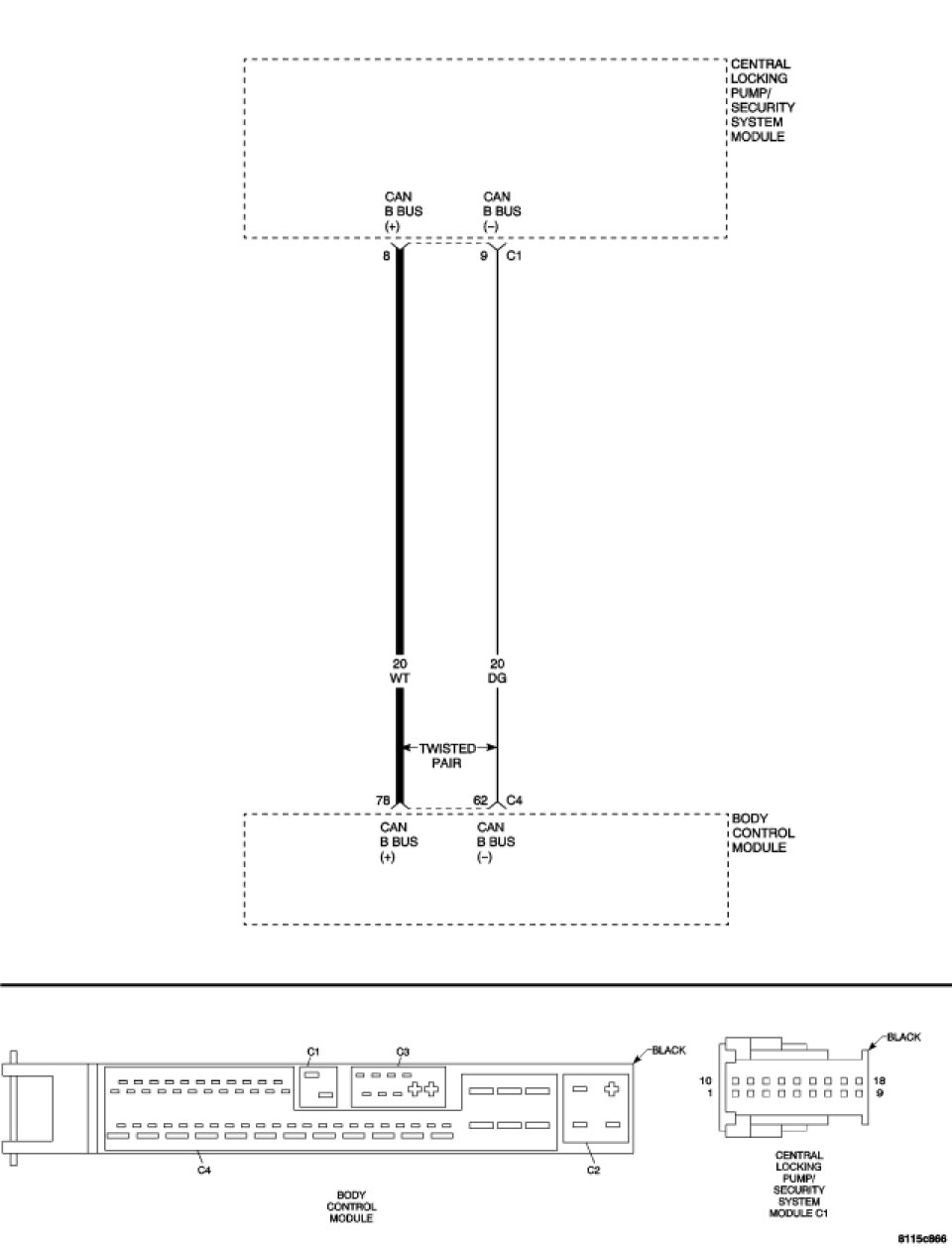

For a complete Body Control Module Circuit Diagram. Body - Electrical Diagnostics.

Diagnostic Test

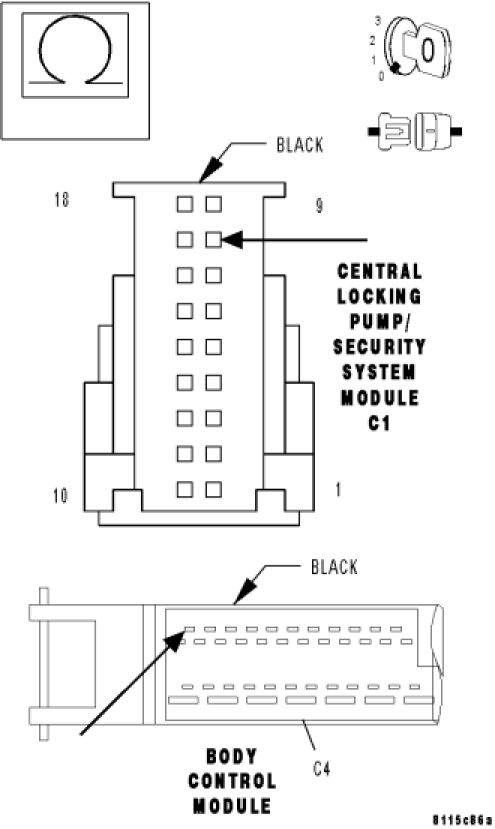

1. MEASURE THE RESISTANCE OF THE CAN B BUS (+) CIRCUIT




Turn the ignition off.
Disconnect the BCM harness connector.
Disconnect the CLP/SSM harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the CAN B Bus (+) circuit from the BCM harness connector to the CLP/SSM harness connector.
Is the resistance below 1.0 ohm?

Yes

- Go to 2

No

- Repair the CAN B Bus (+) circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test

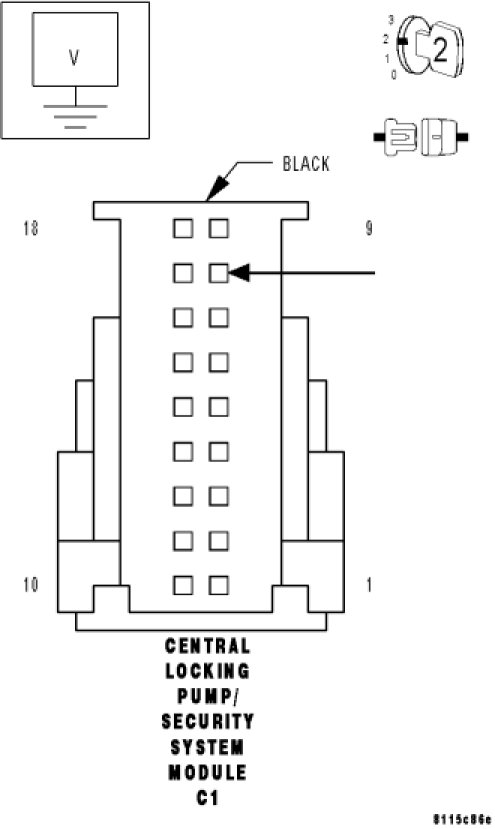

2. MEASURE THE VOLTAGE OF THE CAN B BUS (+) CIRCUIT




Turn the ignition on.
Measure the voltage of the CAN B Bus (+) circuit at the CLP/SSM harness connector.
Is voltage present?

Yes

- Repair the CAN B Bus (+) circuit for a short to voltage.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Go to 3

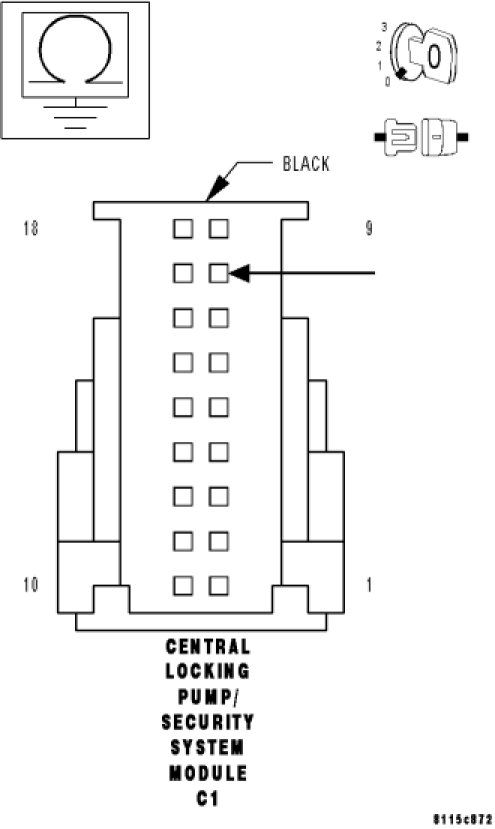

3. MEASURE THE RESISTANCE OF THE CAN B BUS (+) CIRCUIT




Turn the ignition off.
Measure the resistance between ground and the CAN B Bus (+) circuit at the CLP/SSM harness connector.
Is the resistance below 10K ohms?

Yes

- Repair the CAN B Bus (+) circuit for a short to ground.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Central Locking Pump/Security System Module. Sentry Key Remote Entry Module - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
