1014-00 HAZARD SWITCH CIRCUIT





When Monitored and Set Condition

- When Monitored: With the ignition on.

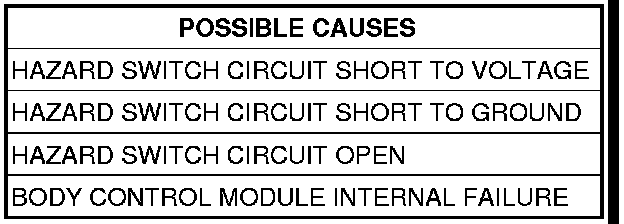

- Set Condition: The Body Control Module (BCM) reports a short to power, ground, or an open on the Hazard Switch circuit.

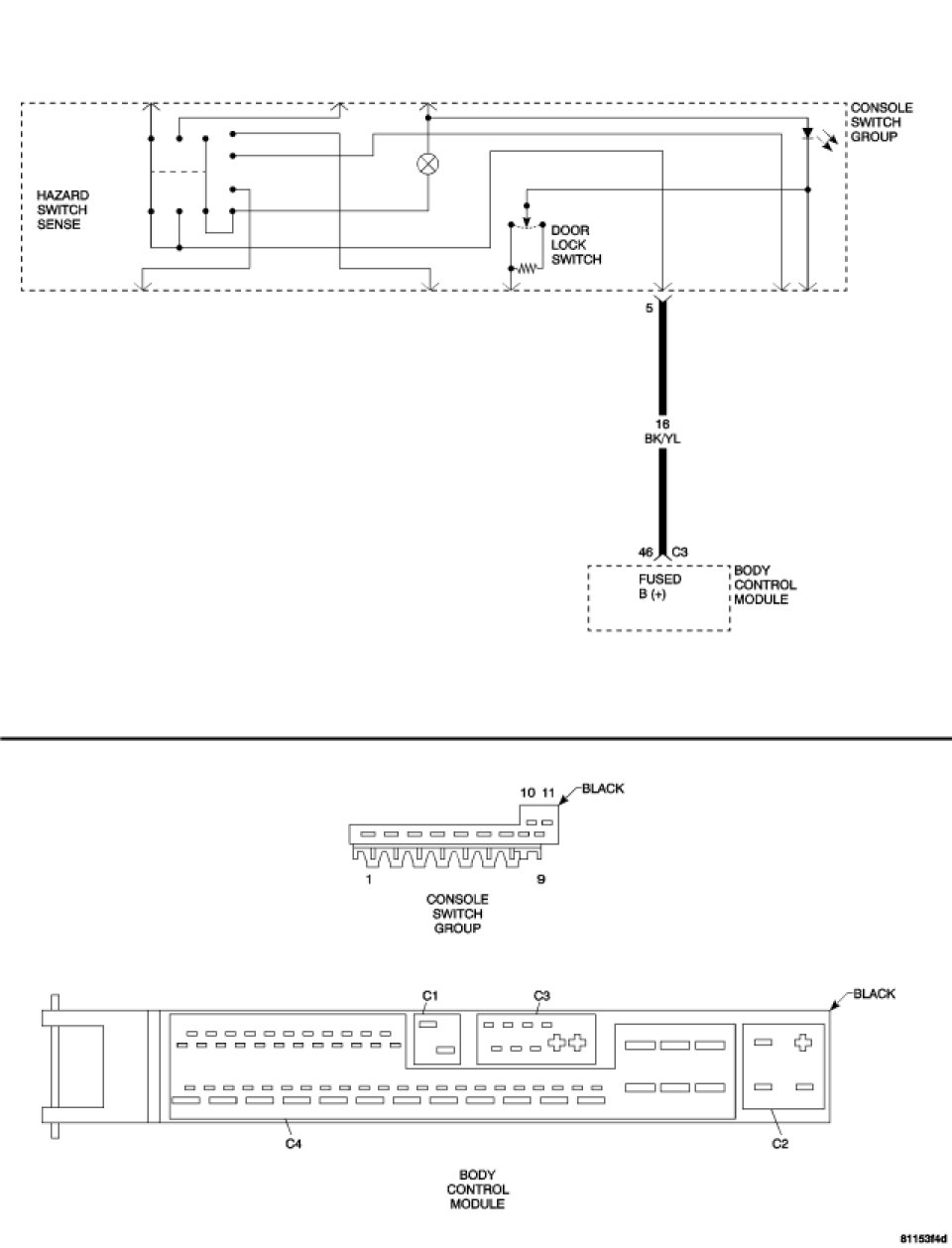

For a complete Body Control Module Circuit Diagram. Body - Electrical Diagnostics.

Diagnostic Test

1. MEASURE THE RESISTANCE OF THE HAZARD SWITCH CIRCUIT




Turn the ignition off.
Disconnect the BCM harness connector.
Disconnect the Console Switch Group harness connector.

NOTE: Check connector - Clean/repair as necessary.

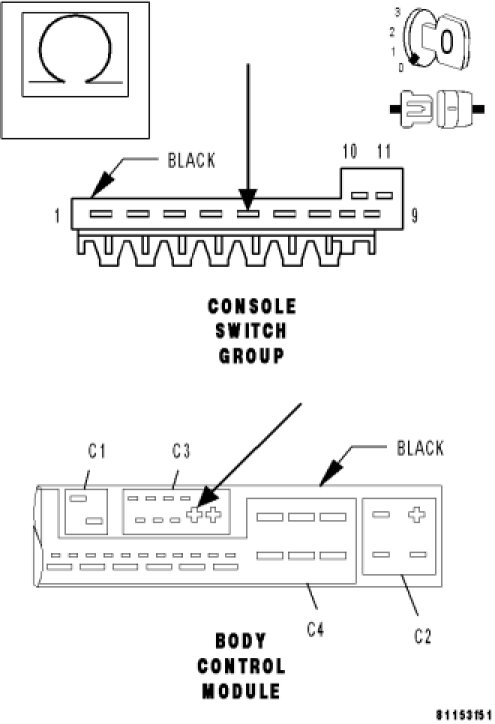

Measure the resistance of the Hazard Switch circuit between the BCM harness connector and the Console Switch Group harness connector.
Is the resistance below 5.0 ohms?

Yes

- Go to 2

No

- Repair the Hazard Switch circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test

2. MEASURE THE VOLTAGE OF THE HAZARD SWITCH CIRCUIT




Turn the ignition on.

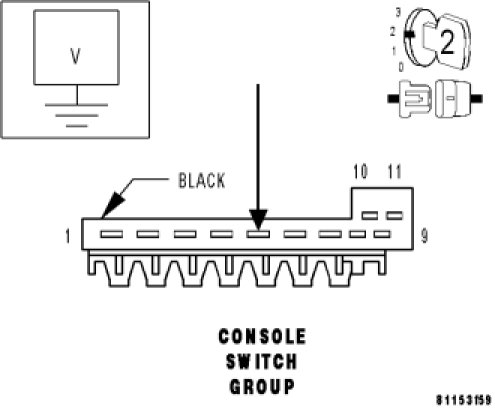

Measure the voltage of the Hazard Switch circuit between the Console Switch Group harness connector and Ground.
Is voltage present?

Yes

- Repair the Hazard Switch circuit for a short to battery.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Go to 3

3. MEASURE THE RESISTANCE OF THE HAZARD SWITCH CIRCUIT




Turn the ignition off.

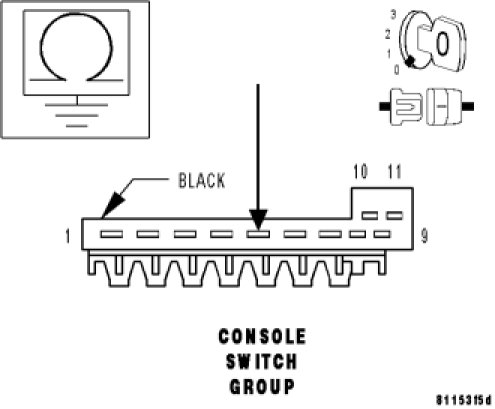

Measure the resistance of the Hazard Switch circuit between the Console Switch Group harness connector and ground.
Is the resistance below 10K ohms?

Yes

- Repair the Hazard Switch circuit for a short to ground.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Body Control Module. Body Control Module - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
