B1081

B1081-SEAT WEIGHT SYSTEM CONFIGURATION MISMATCH-COMPONENT NOT CORRESPONDING (CAN) [ZH]

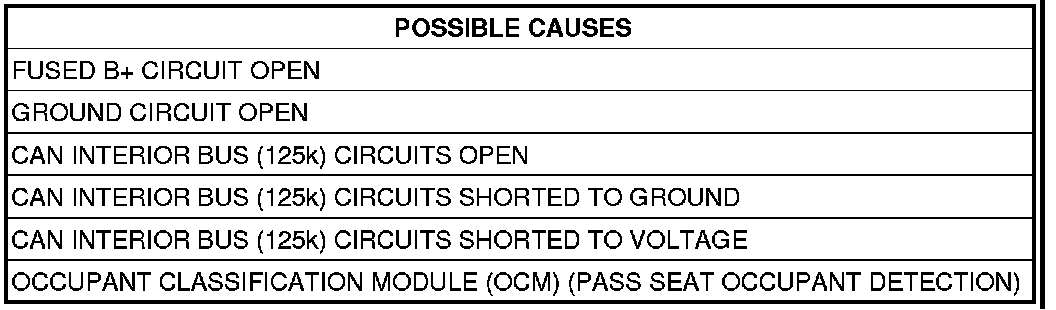

Diagnostic Test

1. CHECK COMMUNICATION WITH ORC
Turn the ignition on.
Using the scan tool, attempt to communicate with the ORC.
Is the scan tool able to communicate with the ORC?

Yes

- Go To 2

No

- Check the CAN Interior Bus circuits for an open (between the DLC and the spice), short to ground or short to voltage.

2. FUSED B+ CIRCUIT OPEN
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Turn the ignition off.
Disconnect the Occupant Classification Module (Pass Seat Occupant Detection) harness connector.

NOTE: Check connector - Clean/repair as necessary.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

Measure the voltage Fused B+ circuit at the OCM harness connector.
Is the voltage above 10 volts?

Yes

- Go To 3

No

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

- Repair the Fused B+ circuit for an open.
- Perform *AIRBAG VERIFICATION TEST. Airbag System Verification Test

3. GROUND CIRCUIT OPEN

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Measure the resistance of the Ground circuit from the OCM harness connector to ground.
Is the resistance below 5.0 ohms?

Yes

- Go To 4

No

- Repair the Ground circuit for an open.
- Perform *AIRBAG VERIFICATION TEST. Airbag System Verification Test

4. CAN INTERIOR BUS CIRCUITS OPEN
Measure the resistance of the CAN Interior Bus circuits from the OCM harness connector to the DLC.
Is the resistance below 5.0 ohms for both circuits?

Yes

- If the Occupant Classification Module (OCM) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.
- Replace the Occupant Classification Module (Pass Seat Occupant Detection).
- Perform *AIRBAG VERIFICATION TEST. Airbag System Verification Test

No

- Repair the CAN Interior Bus circuit for an open.
- Perform *AIRBAG VERIFICATION TEST. Airbag System Verification Test
