Installation

INSTALLATION




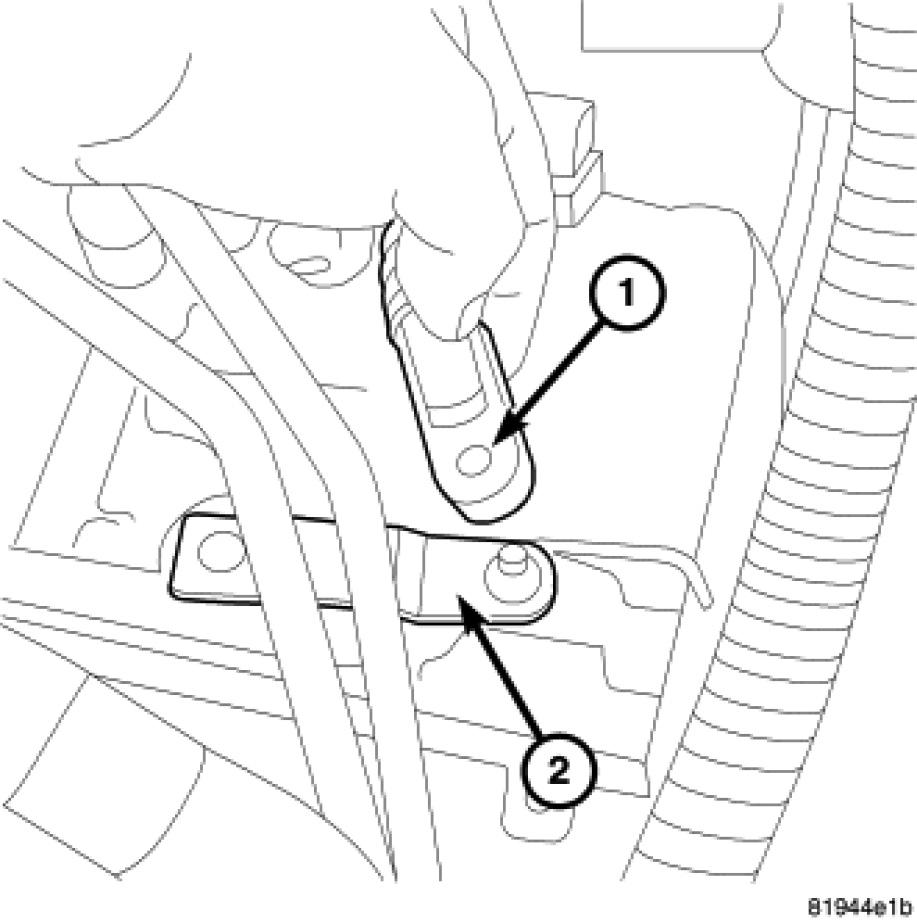

1. Install the wiring harness onto the transaxle.

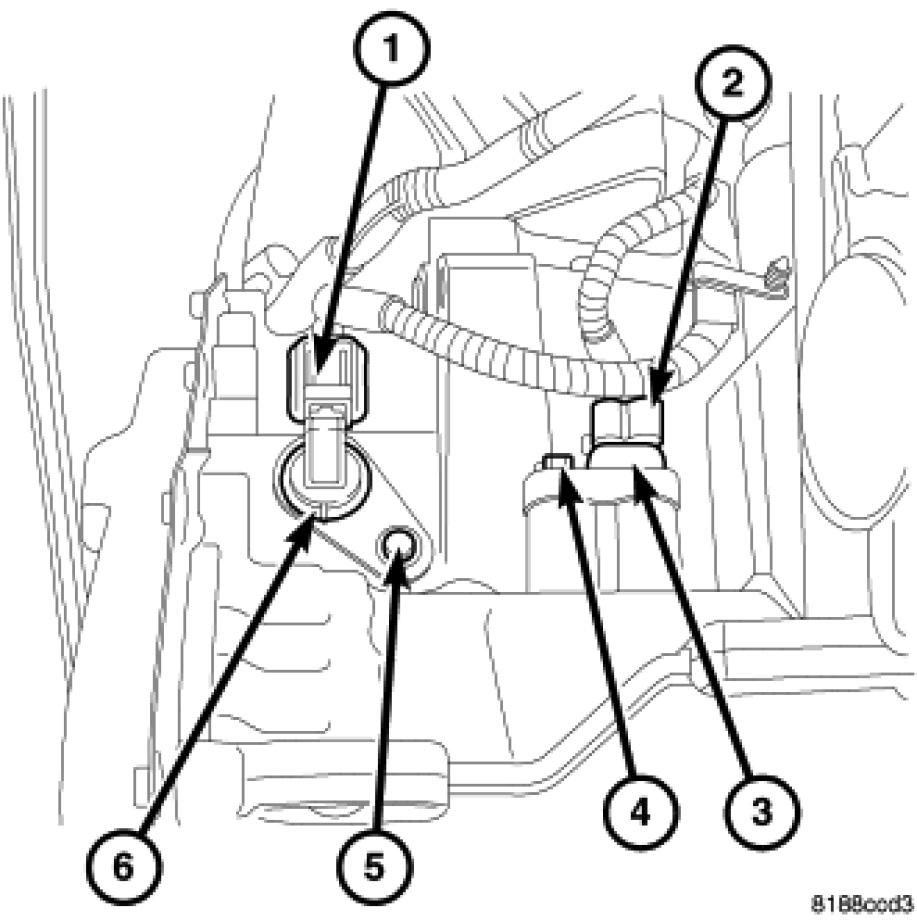

2. Connect input speed sensor connector.
3. Connect both output speed sensor connectors (1, 2).

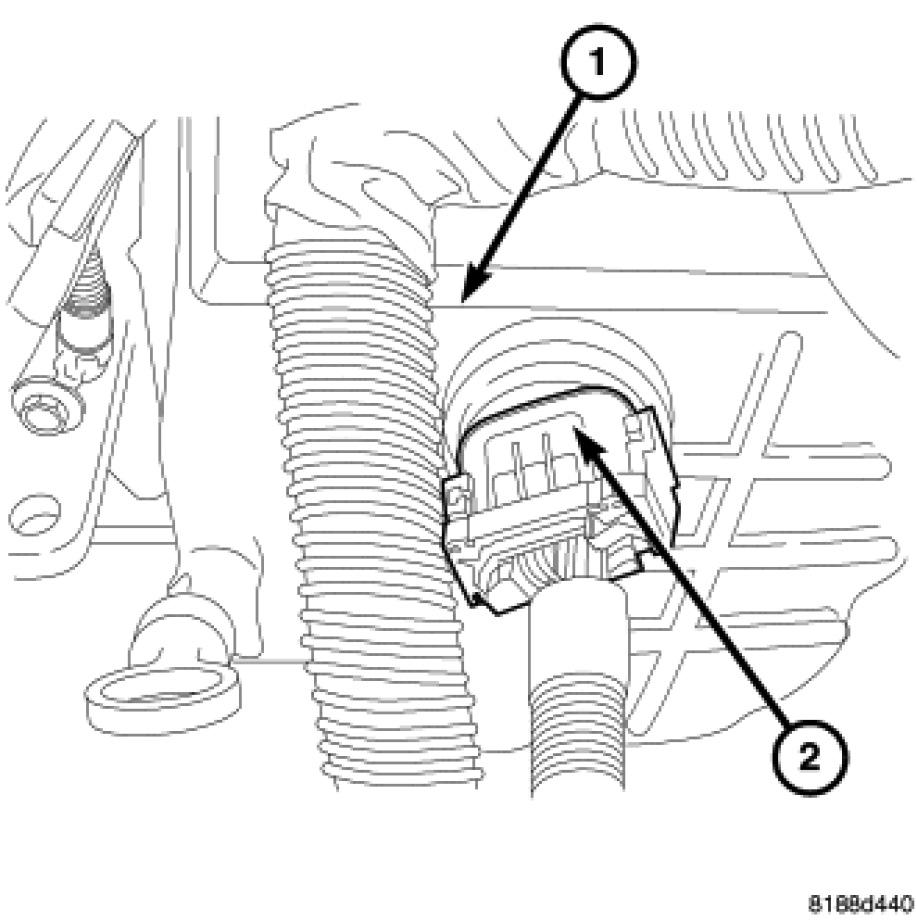

4. Connect solenoid/pressure switch assembly connector (2).





NOTE: The two transaxle-to-engine bolts next to the inspection cover will have a exhaust bracket under them.

5. Install transaxle into position. Install the transaxle-to-engine two outer lower bolts and torque to 95 Nm (70 ft. lbs.).

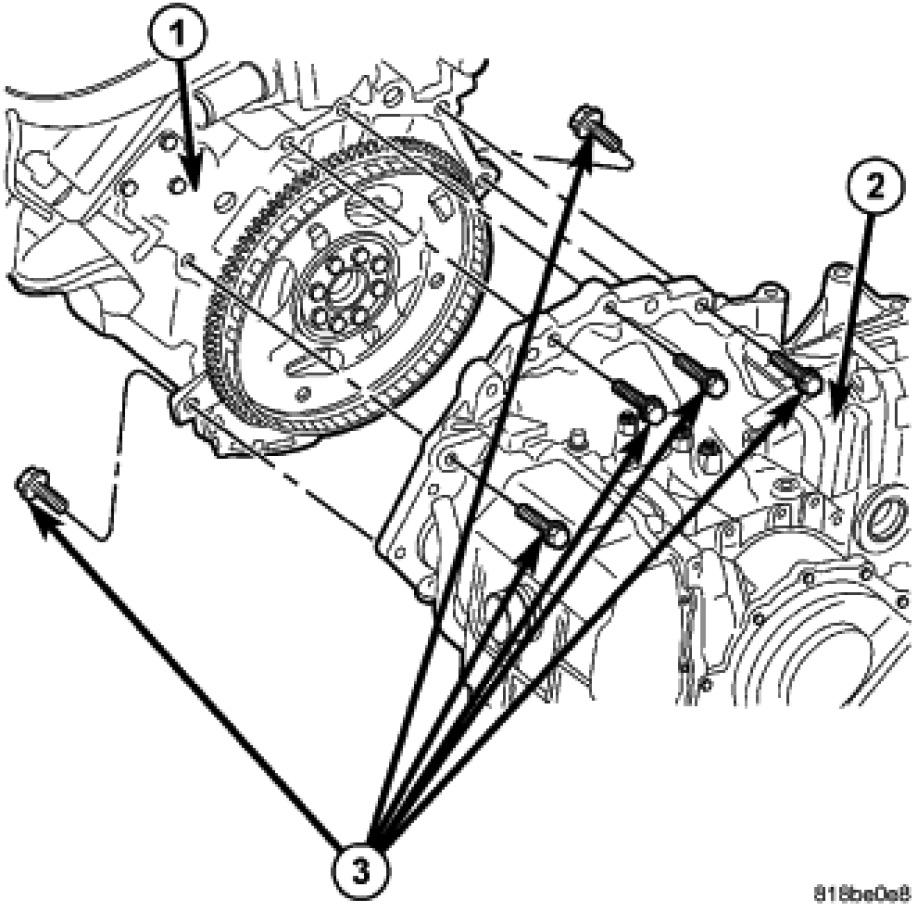

6. Install torque converter-to-driveplate bolts (1) and tighten to 88 Nm (65 ft. lbs.).




7. Install torque converter dust shield and bolt tighten to 6 Nm (53 in. lbs.).

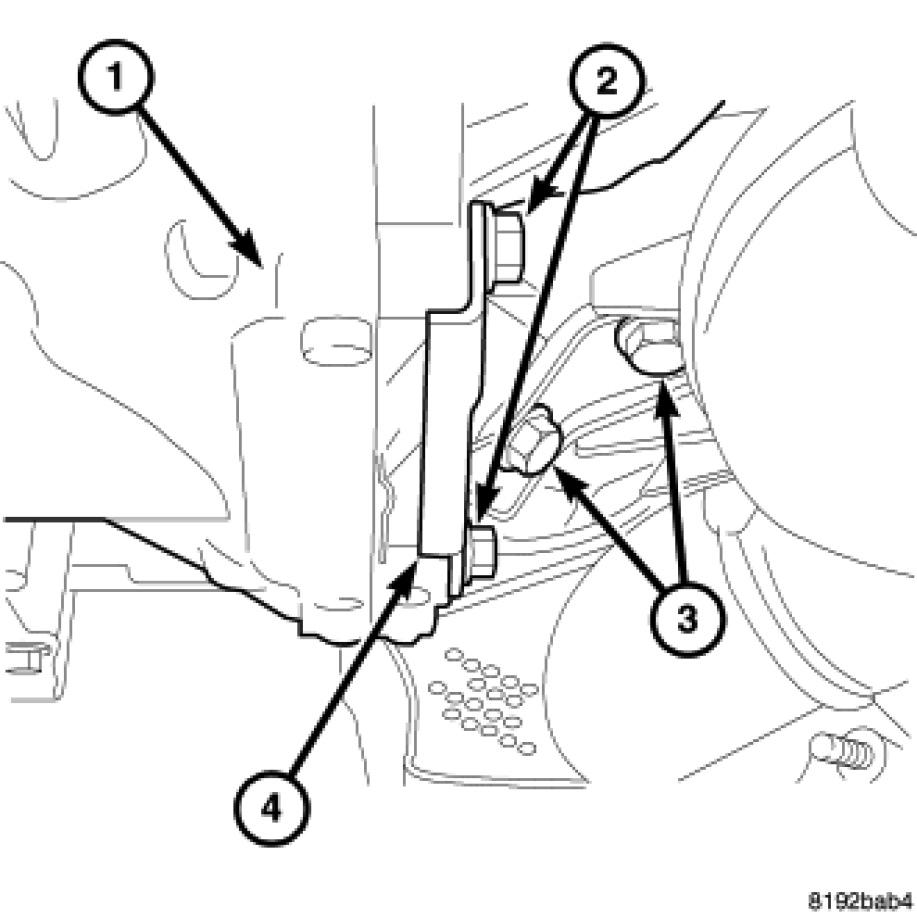

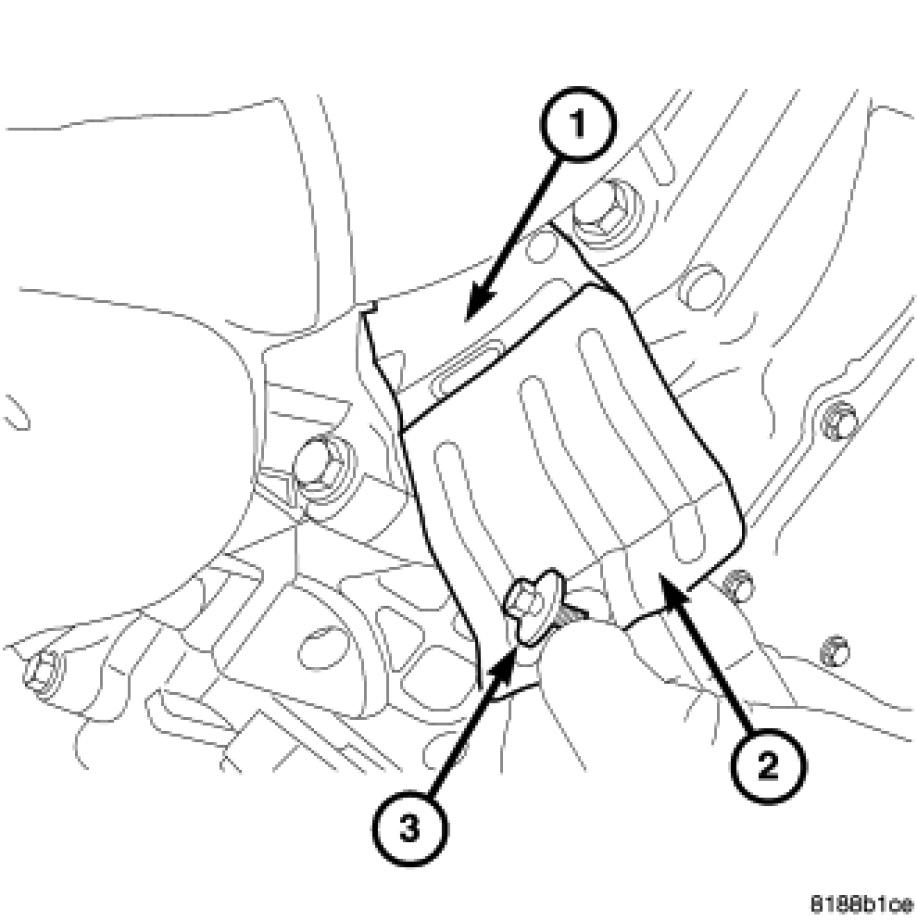

8. Install bolts (2) to stand off bracket (4) and tighten to 95 Nm (70 ft. lbs.).
9. Install bolts (3) to exhaust bracket.




10. Install the starter motor.

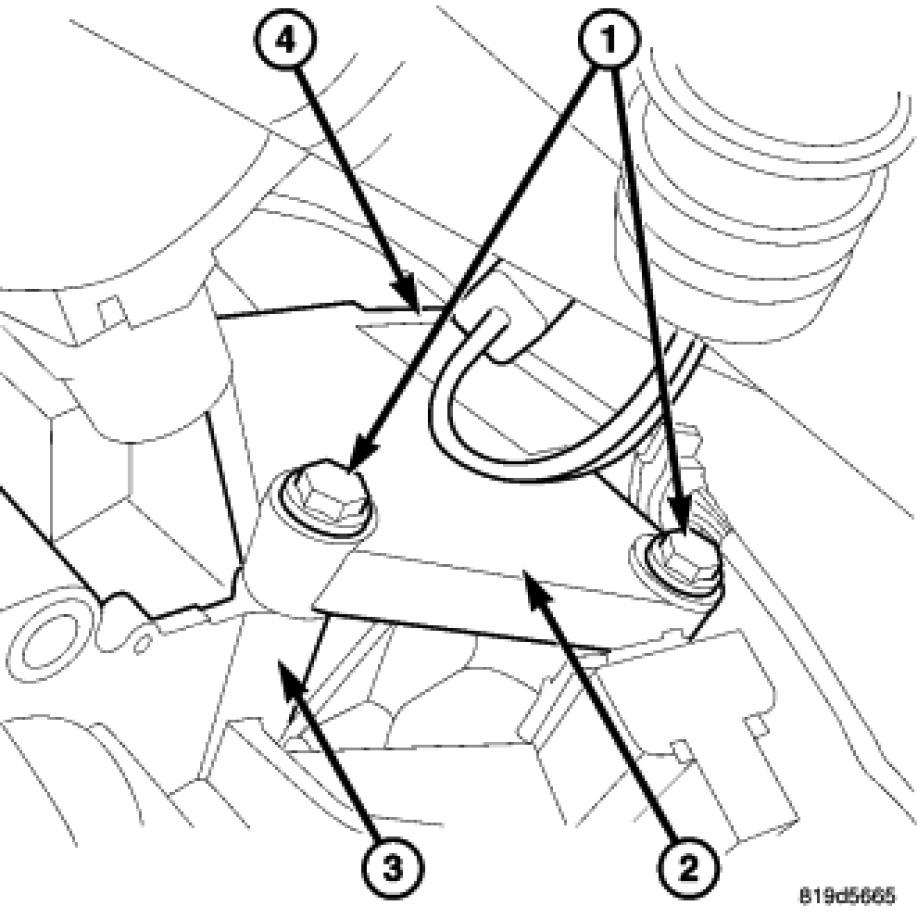

11. Install the front mount bracket (2).
12. Install the front mount bracket bolts (1) and tighten to 100 Nm (74 ft. lbs.).




13. Install the transmission crossmember and tighten to 50 Nm (37 ft. lbs.).




14. Install front mount through bolt and tighten to 50 Nm (37 ft. lbs.)
15. the front and both side splash shields




16. Lower the vehicle.
17. Install the left side mount bolts and tighten to 100 Nm (74 ft. lbs.)

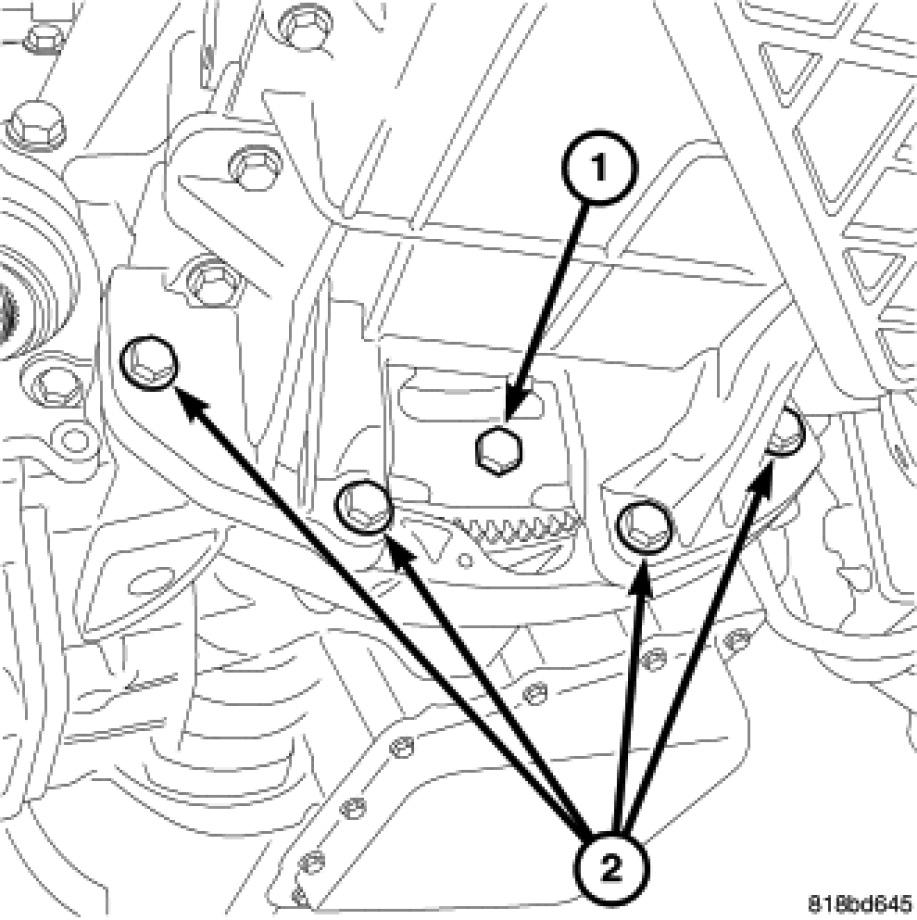

18. Install the rear mount and bolts, tighten to 100 Nm (74 ft. lbs.).

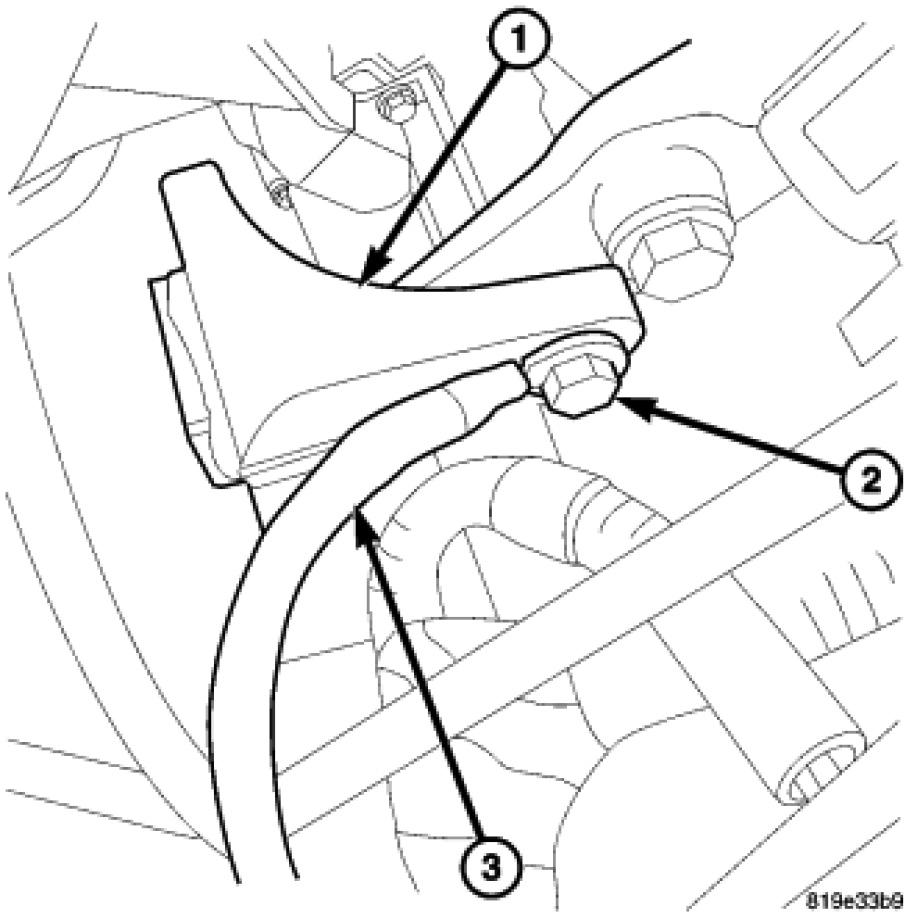

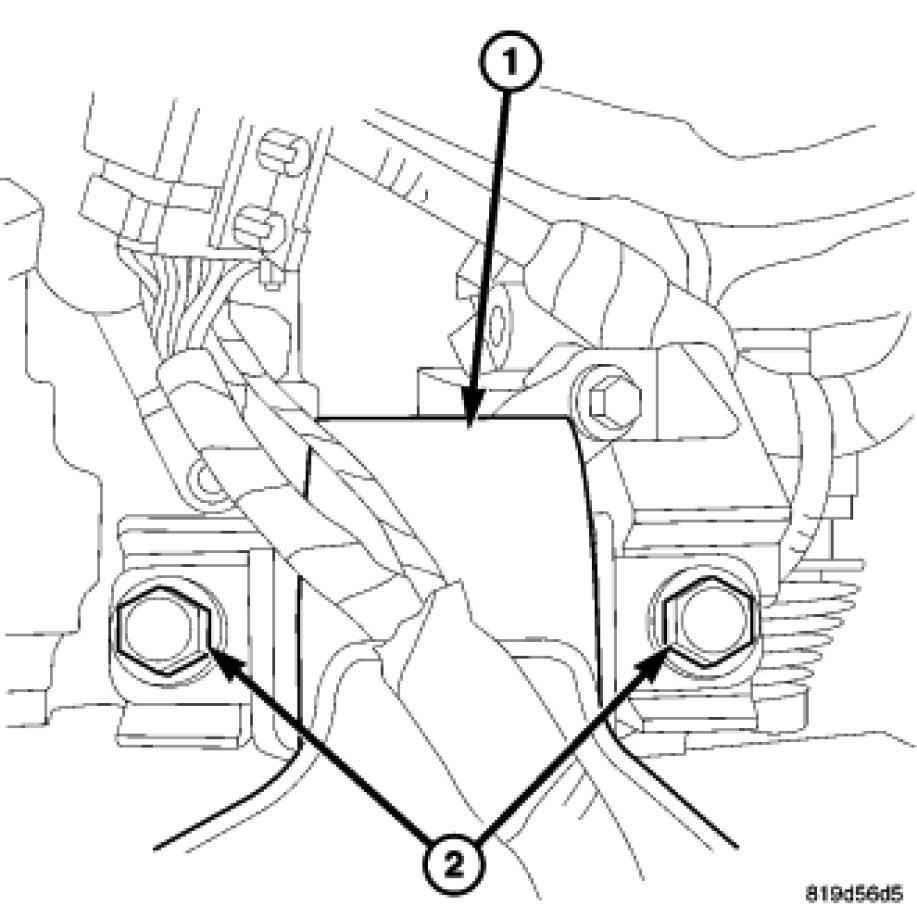

19. Install the bolt (2) holding the ground cable (3) to the front mount bracket (1) and tighten to 50 Nm (37 ft. lbs.).




20. Install the transaxle-to-engine upper bolts and tighten to 95 Nm (70 ft. lbs.).
21. Install halfshaft assemblies.




22. Install and connect crankshaft position sensor (1) and tighten to 12 Nm (105 in. lbs.).
23. Connect oil cooler lines to transaxle. An audible 'click' should be heard. Verify connection by pulling outward.




24. Connect gearshift cable to the bracket
25. Connect gearshift cable to transaxle manual valve lever. Verify adjustment.




26. Connect the powertrain control module electrical connector.

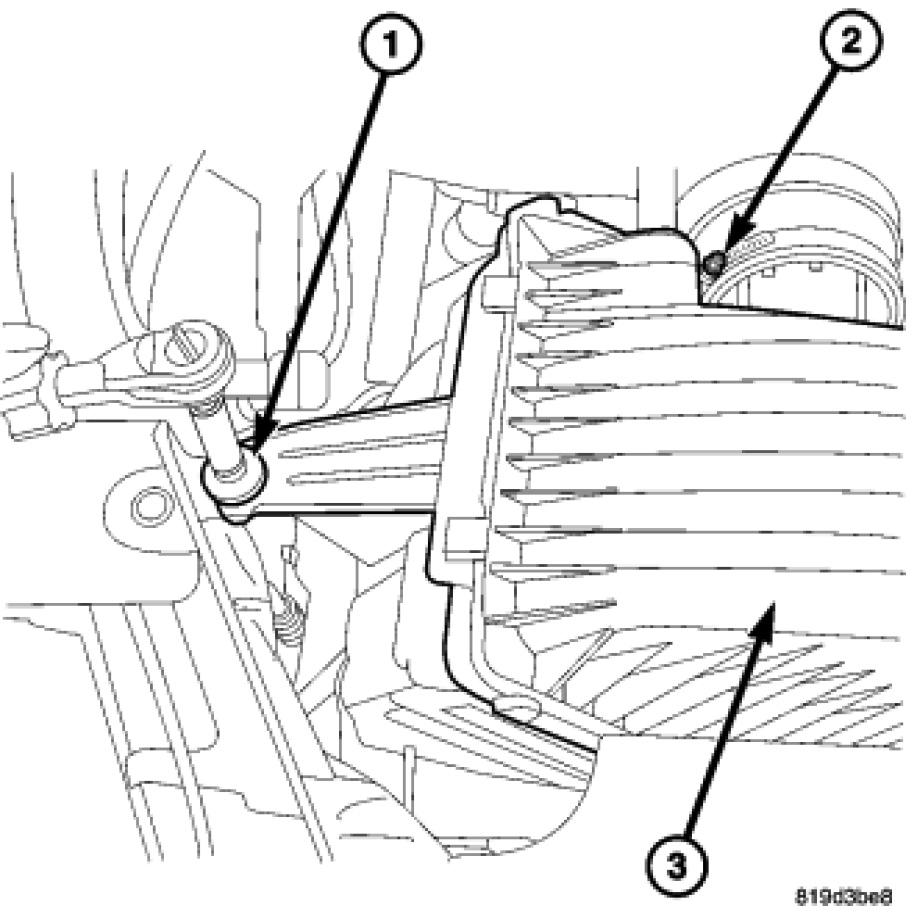

27. Install the air box (3) and the engine cover.

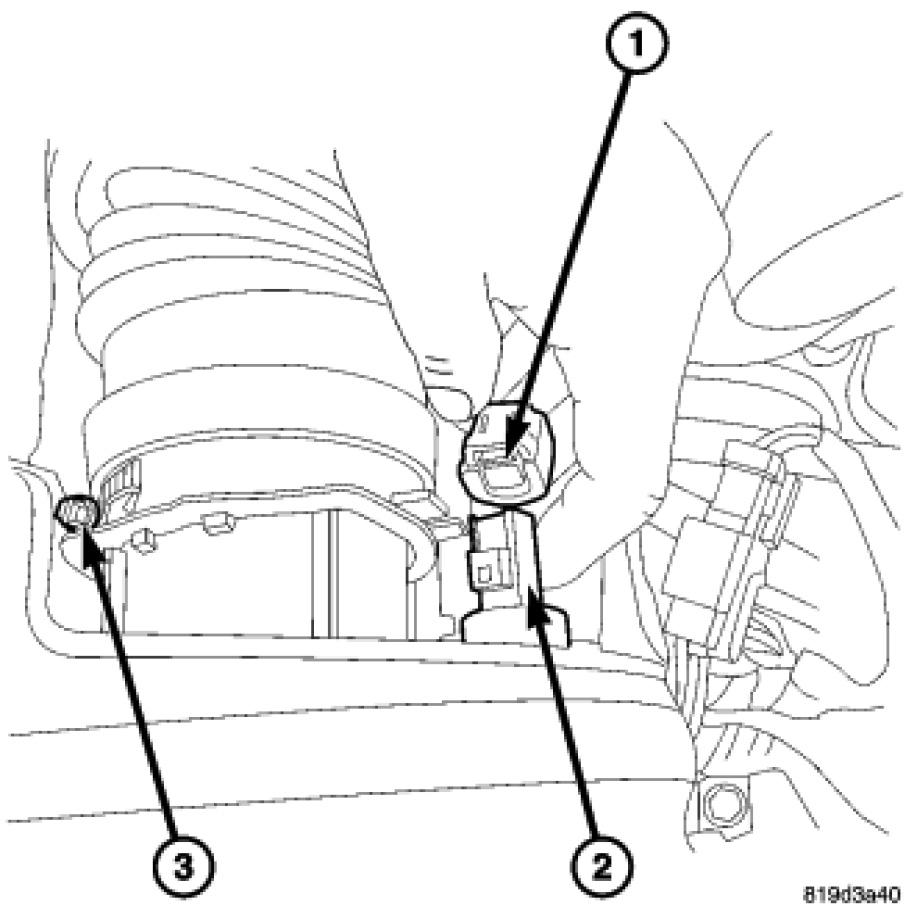

28. Connect the intake air tempter sensor electrical connector (1).
29. Connect negative battery cable.
