Home >> Chrysler >> 2007 >> Sebring Sedan V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Torque Specifications

Engine Torque Specifications






SPECIFICATIONS - TORQUE

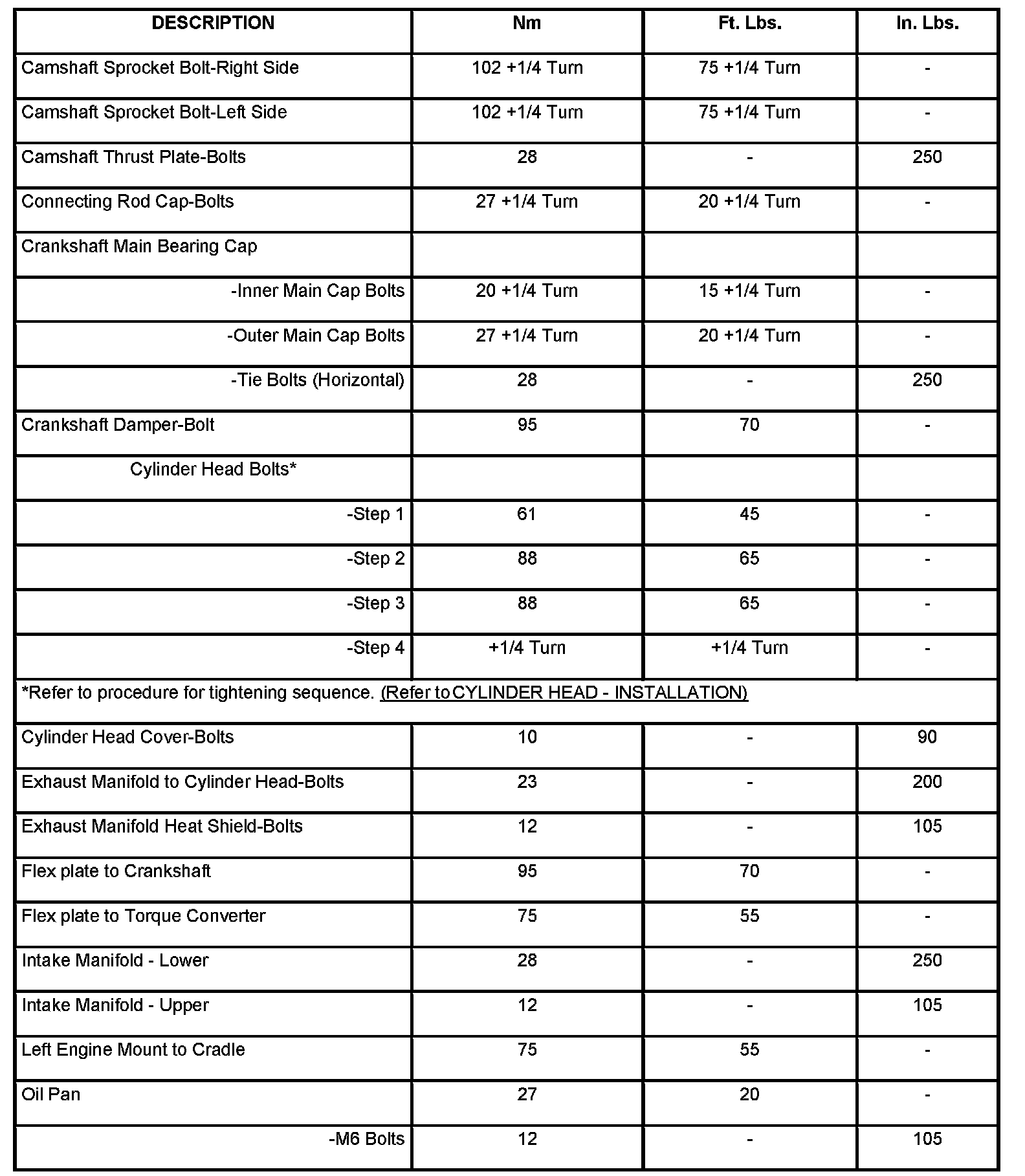

Torque (Part 1):





Torque (Part 1)

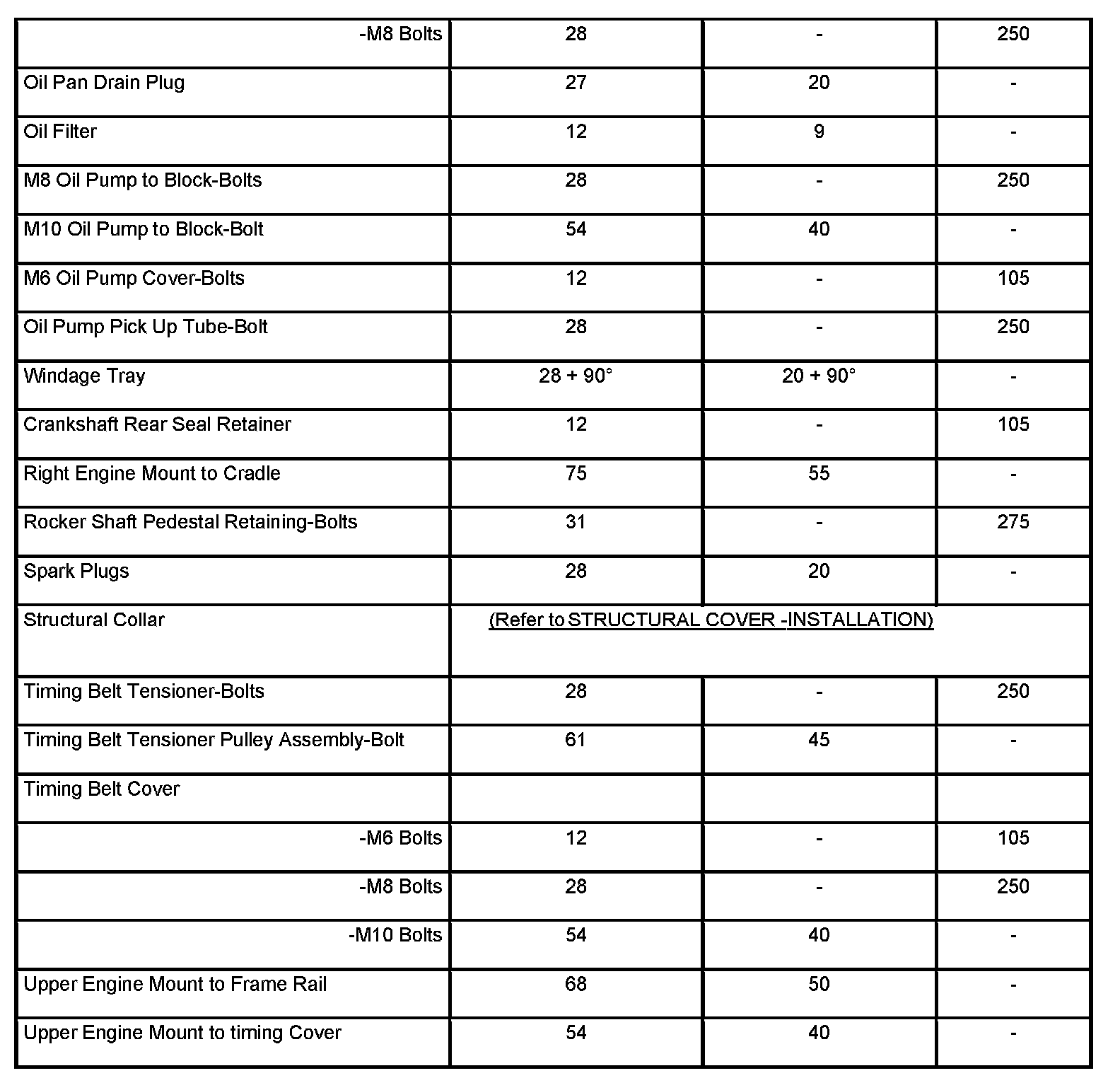

Torque (Part 2):





Torque (Part 2)

WATER PUMP
Tighten bolts to 12 Nm (105 in. lbs.)
