Solenoid-Short Runner Valve

Component ID: 387

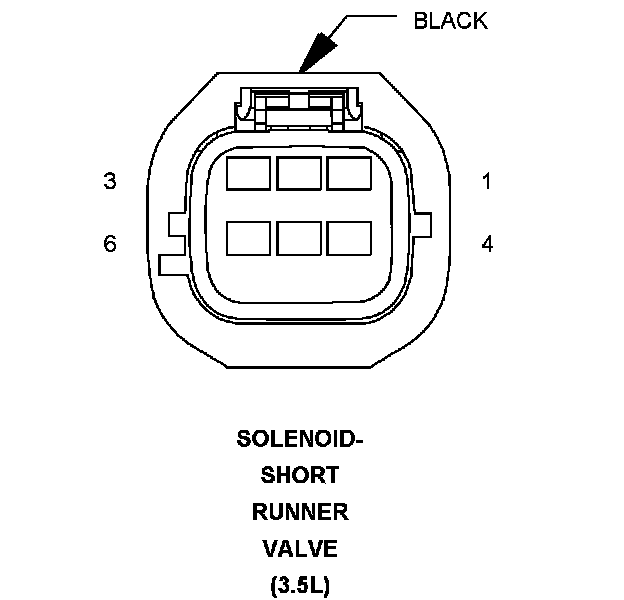

Component : SOLENOID-SHORT RUNNER VALVE

Connector:
Name : SOLENOID-SHORT RUNNER VALVE
Color : BLACK
# of pins : 6
Qualifier : (3.5L)




Pin Description Circuit
1 SRV CONTROL K236 20DB/LG
2 - -
3 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
4 SENSOR GROUND K900 20DB/LB
5 SRV SIGNAL K235 20DB/YL
6 5 VOLT SUPPLY F856 20YL/PK

Component Location - 27
