Removal

3.5L




1. Disconnect negative cable from battery

2. Remove the engine cover.

3. Remove the air cleaner box.

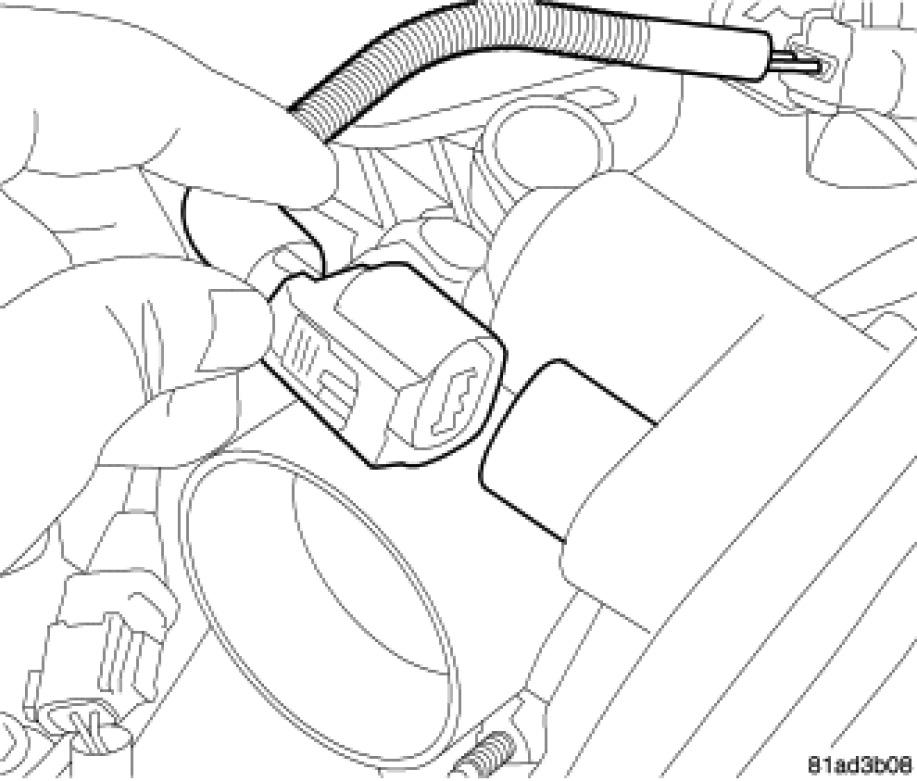

4. Disconnect electrical connectors from throttle body.

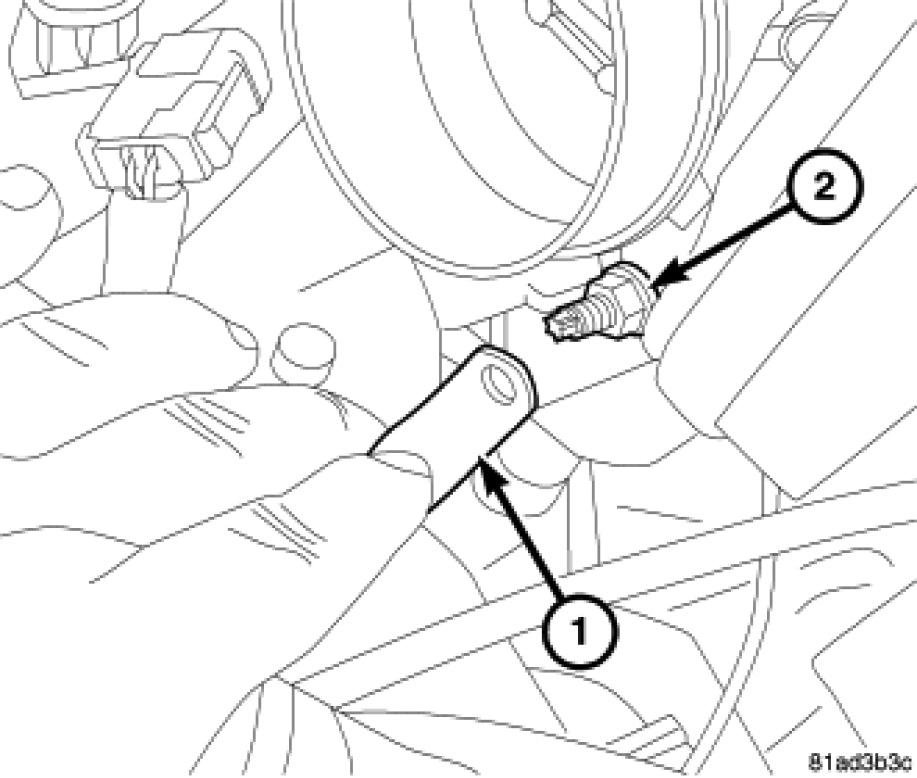

5. Remove nut for throttle body bracket (1).

6. Loosen lower throttle body bracket bolt.

7. Remove bracket (1) from throttle body stud (2).

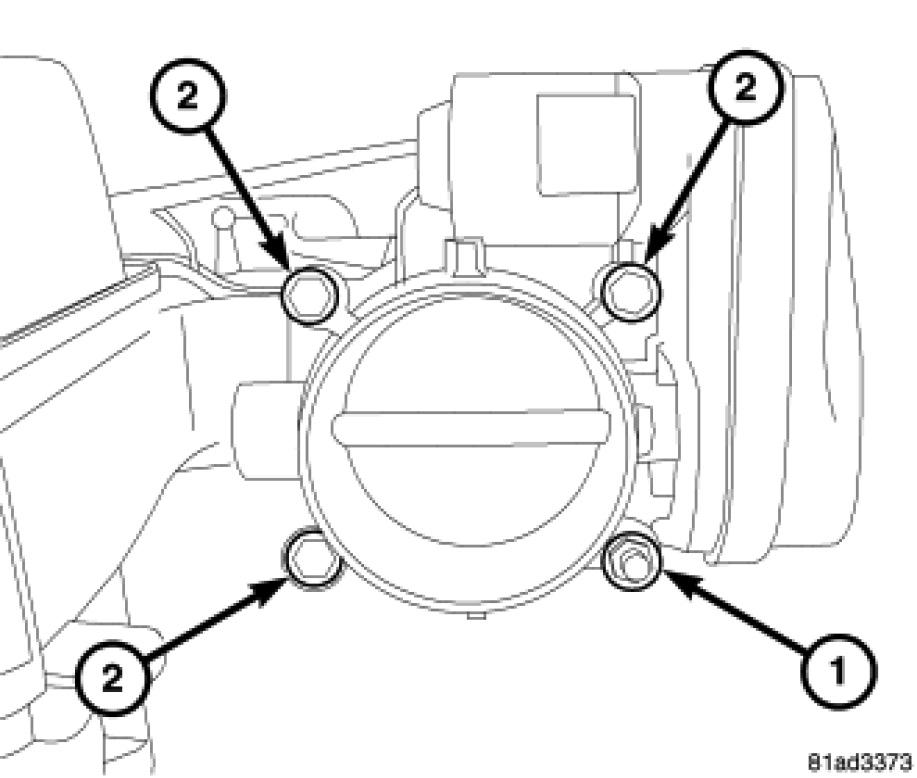

8. Remove throttle body mounting stud/bolt.









9. Remove 3 throttle body bolts.

10. Remove throttle body.

11. Remove throttle body seal.
