Removal

REMOVAL




1. Perform fuel pressure release procedure..
2. Disconnect the negative battery cable.
3. Remove timing belt.
4. Remove camshaft sprockets.

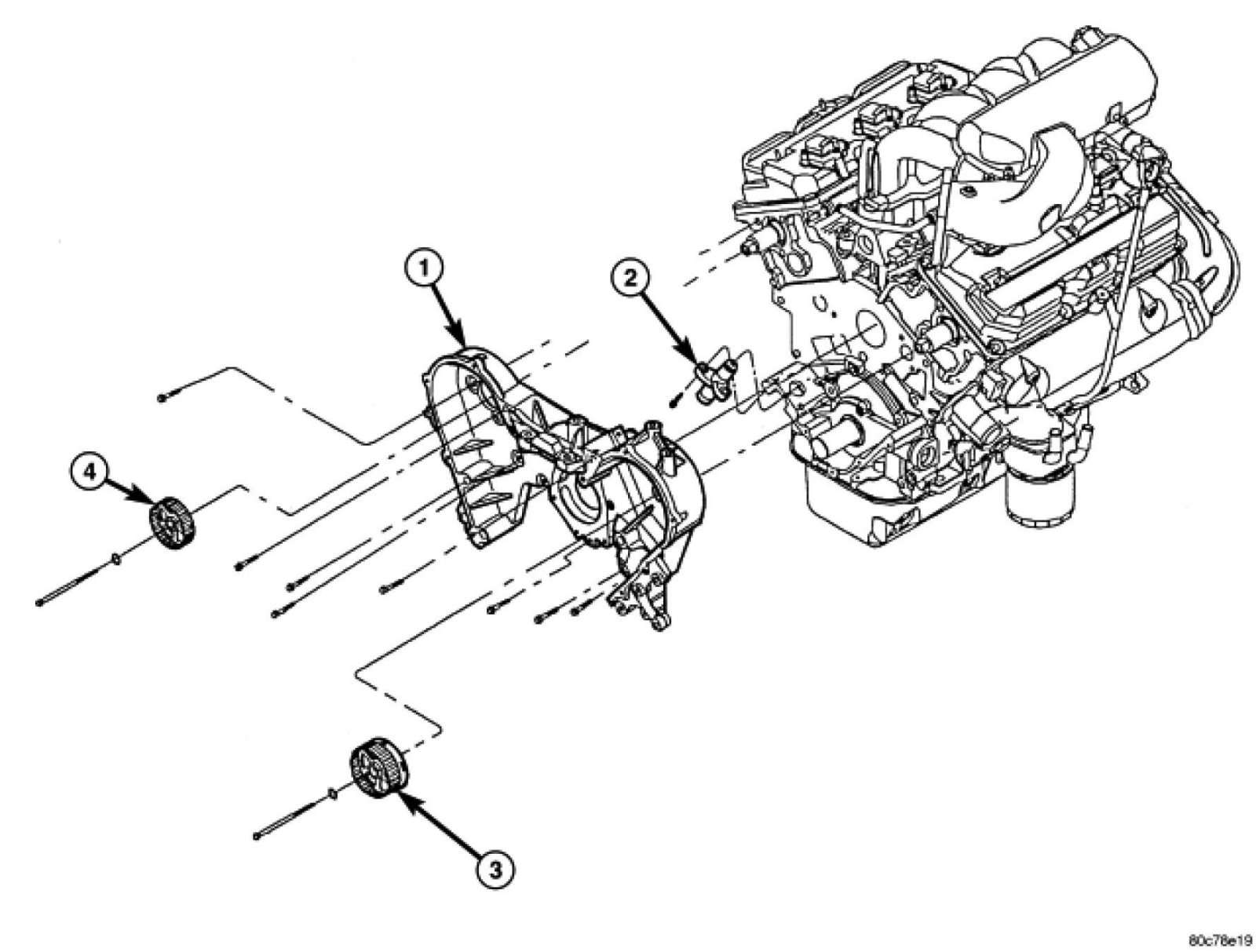

5. Remove rear timing belt cover bolts.
6. Remove the rear cover.

NOTE: The rear timing belt cover has O-rings to seal the water pump passages to cylinder block. Do not reuse the O-rings.
