Removal - Crankshaft Sprocket






REMOVAL - CRANKSHAFT SPROCKET




1. Remove the timing belt.

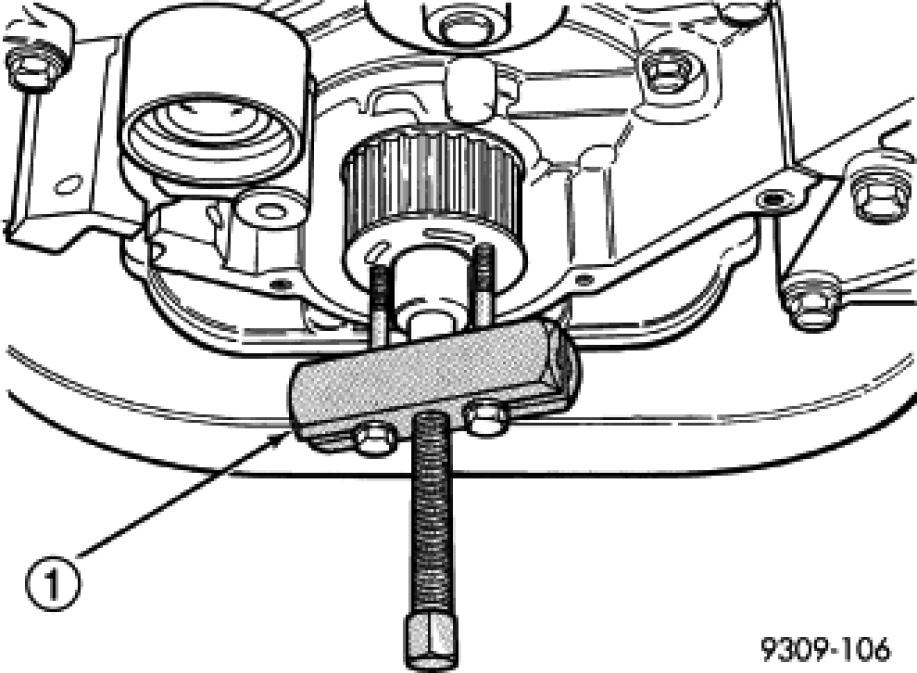

2. Remove crankshaft sprocket using Special Tool L-4407-A.
