B10B1

B10B1-INFRARED SENSOR THERMISTOR CIRCUIT HIGH

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

If the IR Sensor fails the internal self test.





NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC is stored.

Diagnostic Test

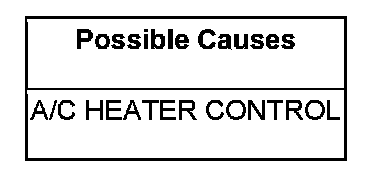

1.REPLACE THE A/C HEATER CONTROL

Repair

- Replace the A/C Heater Control.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
